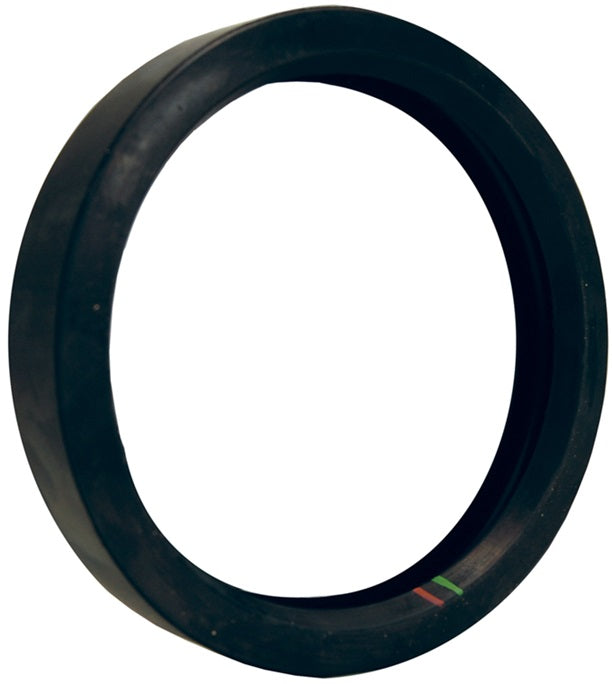

G250E by Dixon Valve | Grooved Fitting Gasket | 2-1/2" Size | EPDM

G250E by Dixon Valve | Grooved Fitting Gasket | 2-1/2" Size | EPDM

Save $1.79 Save $1.79
$6.15
$6.15 - $6.15
$6.15
$4.36
$4.36 - $4.36
$4.36

Dixon Valve
Grooved Fitting Gasket | EPDM

For use with water, dilute acids, alkalis, salts and many chemical services not involving hydrocarbons, oils or gases.
Specifications for Variant SKU: G250E Dixon
Seal Material(s): EPDM
Features:
  • Color code: black with green stripe.
  • Excellent oxidation resistance.
Construction:
  • EPDM.
Safety Notes:
  • Use lubricant on gasket.
  • Not for use with hydrocarbons.
  • Check gasket color code to be certain it is recommended for the service intended.
  • For services not listed contact Dixon for recommendations.
Specification:
  • Temperature range: -22°F to 230°F (-30°C to 110°C)
EPDM
Part Number		 Size
G150E 1-1/2"
G200E 2"
G250E 2-1/2"
G300E 3"
G400E 4"
G500E 5"
G600E 6"
G800E 8"
G1000E 10"
G1200E 12"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
