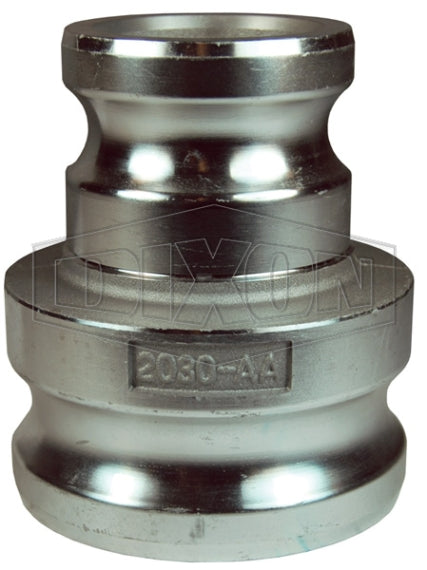

G300-AA-AL by Dixon Valve | Global Cam & Groove Spool Adapter | Type AA | 3" Adapter x 3" Adapter | A380 Permanent Mold Aluminum

G300-AA-AL by Dixon Valve | Global Cam & Groove Spool Adapter | Type AA | 3" Adapter x 3" Adapter | A380 Permanent Mold Aluminum

Save $5.66 Save $5.66
$50.95
$50.95 - $50.95
$50.95
$45.29
$45.29 - $45.29
$45.29

Dixon Valve
Global Cam & Groove | Type AA | Spool Adapter | Adapter x Adapter

Designed for use with liquids.
Specifications for Variant SKU: G300-AA-AL Dixon
Shape (Orientation): Straight
Cam Type: Type AA (Spool Adapter)
Ends Configuration: 3in Male Cam & Groove, 3in Male Cam & Groove, Some Ends Match
Material(s): Aluminum
Construction:
  • Made to Dixon specifications and branded Dixon.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Designed to interchange with all products produced to A-A-59326D.
A380 Permanent
Mold Aluminum
Part Number		 316 Investment Cast
Stainless Steel
Part Number		 Adapter x Adapter Size Max. Operating Pressure
G100-AA-AL - 1" 250 PSI
G150-AA-AL G150-AA-SS 1-1/2" 250 PSI
G1520-AA-AL - 1-1/2" x 2" 250 PSI
G200-AA-AL G200-AA-SS 2" 250 PSI
G2030-AA-AL G2030-AA-SS 2" x 3" 125 PSI
G300-AA-AL G300-AA-SS 3" 125 PSI
G3040-AA-AL - 3" x 4" 100 PSI
G400-AA-AL G400-AA-SS 4" 100 PSI
