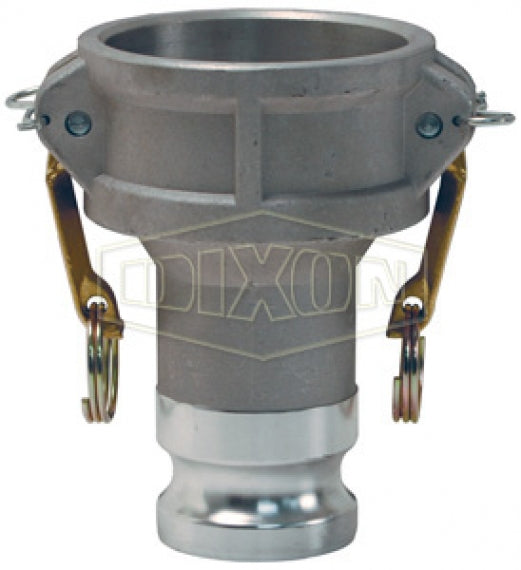

G3020-DA-AL by Dixon Valve | Global Cam & Groove Reducer (Jump Size) Coupling | Type DA | 3" Coupler x 2" Adapter | A380 Permanent Mold Aluminum

G3020-DA-AL by Dixon Valve | Global Cam & Groove Reducer (Jump Size) Coupling | Type DA | 3" Coupler x 2" Adapter | A380 Permanent Mold Aluminum

Save $34.77 Save $34.77
$86.92
$86.92 - $86.92
$86.92
$52.15
$52.15 - $52.15
$52.15

Dixon Valve
Global Cam & Groove | Type DA | Reducer (Jump Size) Coupling

Designed for use with liquids.
Specifications for Variant SKU: G3020-DA-AL Dixon
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 3in Female Cam & Groove, 2in Male Cam & Groove
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber
Construction:
  • Nitrile Rubber seals.
  • Made to Dixon specifications and branded Dixon.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Designed to interchange with all products produced to A-A-59326D.
A380 Permanent
Mold Aluminum
Part Number		 316 Investment Cast
Stainless Steel
Part Number		 Coupler x Adapter Size Max. Operating Pressure
G2030-DA-AL - 2" x 3" 125 PSI
G3020-DA-AL G3020-DA-SS 3" x 2" 125 PSI
G3040-DA-AL - 3" x 4" 125 PSI
G4030-DA-AL G4030-DA-SS 4" x 3" 100 PSI
G5040-DA-AL - 5" x 4" 75 PSI
G6040-DA-AL - 6" x 4" 125 PSI
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
