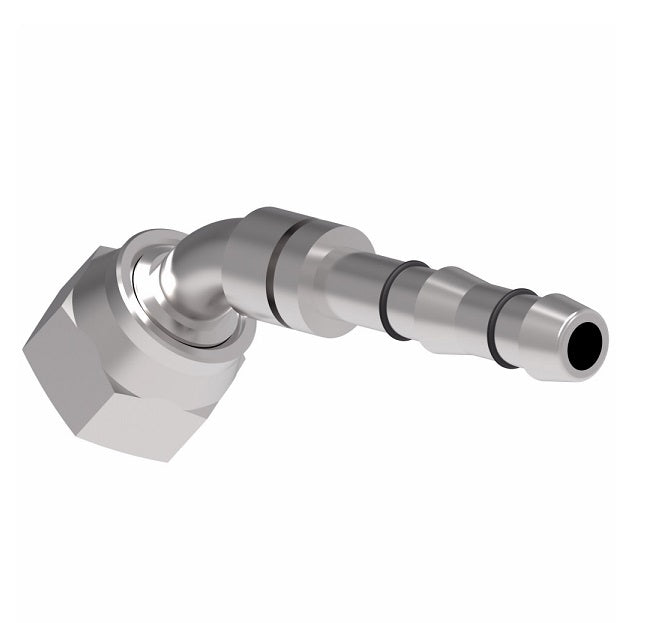

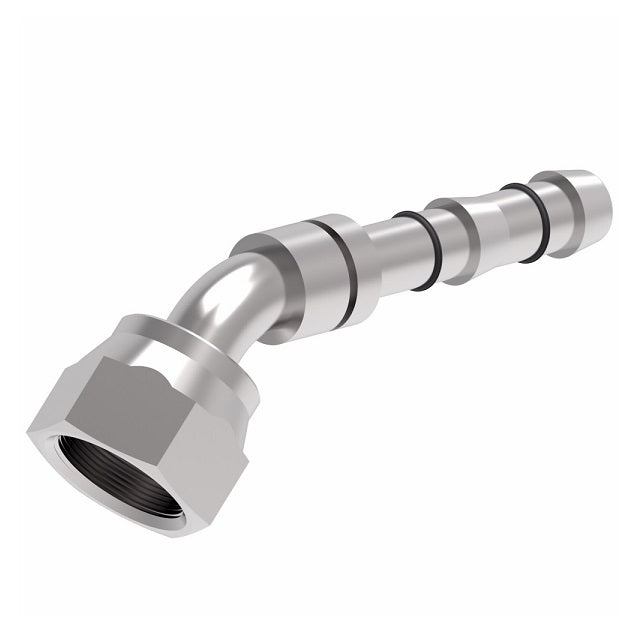

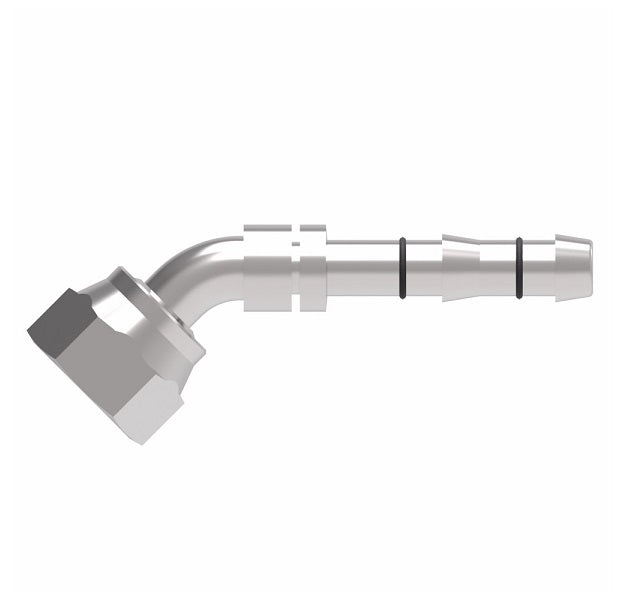

GA23912-10-8 E-Z Clip System by Danfoss | Female ORS Swivel Metric Hex Nut 45° Elbow | A/C Refrigeration Fitting | -10 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel
GA23912-10-8 E-Z Clip System by Danfoss | Female ORS Swivel Metric Hex Nut 45° Elbow | A/C Refrigeration Fitting | -10 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel
GA23912-10-8 E-Z Clip System by Danfoss | Female ORS Swivel Metric Hex Nut 45° Elbow | A/C Refrigeration Fitting | -10 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel
GA23912-10-8 E-Z Clip System by Danfoss | Female ORS Swivel Metric Hex Nut 45° Elbow | A/C Refrigeration Fitting | -10 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel

GA23912-10-8 E-Z Clip System by Danfoss | Female ORS Swivel Metric Hex Nut 45° Elbow | A/C Refrigeration Fitting | -10 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel

$44.25 - $44.25
$44.25
$44.25 - $44.25
$44.25

Danfoss A/C & Refrigeration
E-Z Clip System - Female ORS Swivel - 45° Elbow

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: GA23912-10-8 Danfoss
Brand: E-Z Clip
Shape (Orientation): 45 Degree
Ends Configuration: 5/8in Female O-Ring Face Seal, 1/2in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)
FJ3161-05-0404S 9/16-18 -04 1.86" 1.01" 0.41" 0.69" FF14175
FJ3161-01-0606S 11/16-16 -06 2.65" 1.12" 0.44" 0.81" FF14171
FJ3161-02-0808S 13/16-16 -08 3.02" 1.47" 0.59" 0.94" FF14172
FJ3161-03-1010S 1-14 -10 3.22" 1.67" 0.70" 1.13" FF14173
FJ3161-04-1008S 1-14 -08 3.32" 1.78" 0.70" 1.13" FF14172
GA23912-10-8* 1-14 -08 3.50" 1.96" 0.68" 30mm FF14172
GA23912-10-10* 1-14 -10 3.77" 2.22" 0.68" 30mm FF14173
GA23912-12-12* 1-3/16-12 -12 4.23" 2.65" 0.83" 36mm FF14174
GA23912-8-8* 13/16-16 -08 3.43" 1.89" 0.59" 30mm FF14172

* GA Part numbers have a metric hex
