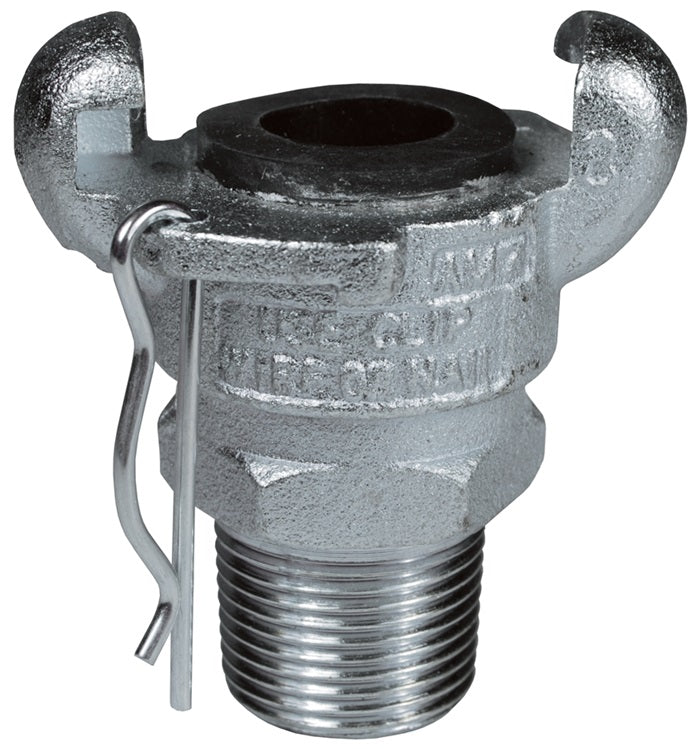

GAM2 Global Air King® by Dixon Valve | Pneumatic Fitting | 2-Lug Threaded End | Chicago Style x 1/2" Male NPT | Plated Steel

GAM2 Global Air King® by Dixon Valve | Pneumatic Fitting | 2-Lug Threaded End | Chicago Style x 1/2" Male NPT | Plated Steel

Save $3.06 Save $3.06
$7.65
$7.65 - $7.65
$7.65
$4.59
$4.59 - $4.59
$4.59

Dixon Valve
Global Air King® Universal Coupling | 2-Lug Threaded End | Chicago Style x Male NPT

Air King is for air and water service only.
Specifications for Variant SKU: GAM2 Dixon
Shape (Orientation): Straight
Ends Configuration: 1/2in Male NPT, 2-Lug Chicago
Material(s): Plated Steel
Seal Material(s): Rubber
Features:
  • Supplied with safety clip.
  • Supplied with rubber washer, part # AWR4
Specifications:
  • Air King meets pressure requirements as specified in A-A-59553 commercial item description superseding Mil Spec.WWC-633D.
  • Pressure rating: 150 PSI at ambient temperature 70°F (21°C).
Use:
  • Use of supplied safety clip guarantees the fittings are properly connected because the safety pin will not go through the holes in mating fittings until couplings are locked in place. Only one Air King safety clip or wire type retainer is required for each Air King universal coupling.
Safety Notes:
  • Never use any Air King coupling for steam service!
  • Air King is for air and water service ONLY.
  • The use of an Air King safety clip or wire type retainer is necessary to ensure Air King universal couplings will not become accidentally disconnected.
  • To provide protection against coupling breakage and related hazards, Dixon recommends the use of a whip hose.
  • Caution: Must use safety clips.
Plated Steel
Part Number		 Brass
Part Number		 Size
GAM2 GAB2 1/2"
GAM7 GAB7 3/4"
GAM12 GAB12 1"
