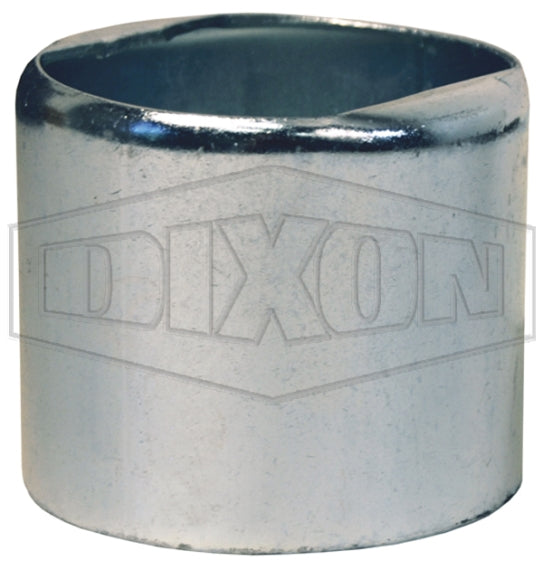

GAS2334NOS by Dixon Valve | Notched Ferrule | 1-1/2" Size | Hose OD Range: from 1-60/64" to 2-12/64" | 304 Stainless Steel

GAS2334NOS by Dixon Valve | Notched Ferrule | 1-1/2" Size | Hose OD Range: from 1-60/64" to 2-12/64" | 304 Stainless Steel

Save $2.34 Save $2.34
$27.81
$27.81 - $27.81
$27.81
$25.47
$25.47 - $25.47
$25.47

Dixon Valve
Notched NOS Ferrule
Specifications for Variant SKU: GAS2334NOS Dixon
Material(s): 304 Stainless Steel
Safety Notes:
  • Only use the NOS shank with the NOS ferrules.
  • Dixon stems and ferrules are specifically designed to be used together as a coupling system.
  • Due to differences in dimensions and tolerances for safety reasons, do not use other manufacturer's stems or ferrules with Dixon products.
  • You must purchase a fitting and the matching ferrule to create an assembly.
  • Contact Dixon for swage or crimp recommendations.
304 Stainless Steel
Part Number		 Size Hose O.D.
From To
GAS2334NOS 1-1/2" 1-60/64" 2-12/64"
GAS2370NOS 1-1/2" 2-4/64" 2-22/64"
GAS2709NOS 2" 2-30/64" 2-44/64"
GAS2885NOS 2" 2-42/64" 2-54/64"
GAS3760NOS 3" 3-30/64" 3-46/64"
GAS3885NOS 3" 3-47/64" 3-54/64"
GAS5010NOS 4" 4-40/64" 4-47/64"
