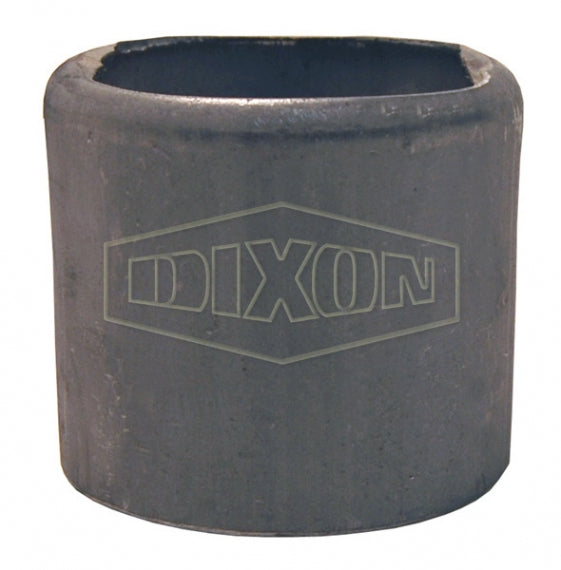

GAS5010NO by Dixon Valve | Notched Ferrule | 4" Size | Hose OD Range: from 4-40/64" to 4-47/64" | 304 Stainless Steel

GAS5010NO by Dixon Valve | Notched Ferrule | 4" Size | Hose OD Range: from 4-40/64" to 4-47/64" | 304 Stainless Steel

Save $126.27 Save $126.27
$315.68
$315.68 - $315.68
$315.68
$189.41
$189.41 - $189.41
$189.41

Dixon Valve
Notched Ferrule
Specifications for Variant SKU: GAS5010NO Dixon
Material(s): 304 Stainless Steel
Safety Notes:
  • Dixon stems and ferrules are specifically designed to be used together as a coupling system.
  • Due to differences in dimensions and tolerances for safety reasons, do not use other manufacturer's stems or ferrules with Dixon products.
  • You must purchase a fitting and the matching ferrule to create an assembly.
  • Contact Dixon for swage or crimp recommendations.
304 Stainless Steel
Part Number		 Size Hose O.D.
From To
GAS2334NO 1-1/2" 1-60/64" 2-12/64"
GAS2370NO 1-1/2" 2-4/64" 2-22/64"
GAS2709NO 2" 2-30/64" 2-44/64"
GAS2885NO 2" 2-42/64" 2-54/64"
GAS3012NO 2-1/2" 2-54/64" 3"
GAS3760NO 3" 3-30/64" 3-46/64"
GAS3885NO 3" 3-47/64" 3-54/64"
GAS5010NO 4" 4-40/64" 4-47/64"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
