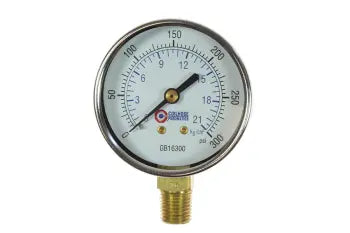

GB16300 by Coilhose | Pressure Gauge | 2-1/2" Chrome Dial Gauge | 1/4" Bottom Mount | 0-300 PSI

GB16300 by Coilhose | Pressure Gauge | 2-1/2" Chrome Dial Gauge | 1/4" Bottom Mount | 0-300 PSI

Save $15.54 Save $15.54
$38.85
$38.85 - $38.85
$38.85
$23.31
$23.31 - $23.31
$23.31
Coilhose Pneumatics - Filters, Regulators & Lubricators - Pressure Gauges
Specifications for Variant SKU: GB16300 Coilhose
Material(s): Chrome Plated, Glass
Overview:
  • Pressure gauges are an invaluable tool to air system performance. Coilhose Pneumatics offers a wide variety of sizes to meet many applications. All gauges are dry type with either polycarbonate or metal cases and polycarbonate or glass lenses. Accuracy is 3-2-3%. Gauges are available in both back mount and bottom mount.

Model Case Dial Size Lens Mounting Location Port Size Pressure Range
MG12160 Aluminum 1-1/2" Polycarbonate Back Mount 1/8" 0-160 PSI
26G-60 Metal 1-1/2" Polycarbonate Back Mount 1/8" 0-60 PSI
8800-60 Polycarbonate 2" Polycarbonate Back Mount 1/4" 0-60 PSI
8800-160 Polycarbonate 2" Polycarbonate Back Mount 1/4" 0-160 PSI
8800-160-DL Polycarbonate 2" Polycarbonate Back Mount 1/4" 0-160 PSI
8800-300 Polycarbonate 2" Polycarbonate Back Mount 1/4" 0-300 PSI
GB1430 Chrome Plated 2" Glass Bottom Mount 1/4" 0-30 PSI
GB1630 Chrome Plated 2-1/2" Glass Bottom Mount 1/4" 0-30 PSI
GB16300 Chrome Plated 2-1/2" Glass Bottom Mount 1/4" 0-300 PSI
GB1730 Chrome Plated 3-1/2" Glass Bottom Mount 1/4" 0-30 PSI
8700-60 Chrome Plated 1-1/2" Glass Back Mount 1/8" 0-60 PSI
GB1860 Chrome Plated 2" Glass Bottom Mount 1/8" 0-60 PSI
GB1460 Chrome Plated 2" Glass Bottom Mount 1/4" 0-60 PSI
GB1660 Chrome Plated 2-1/2" Glass Bottom Mount 1/4" 0-60 PSI
GB1760 Chrome Plated 3-1/2" Glass Bottom Mount 1/4" 0-60 PSI
GB14100 Chrome Plated 2" Glass Bottom Mount 1/4" 0-100 PSI
GB16100 Chrome Plated 2-1/2" Glass Bottom Mount 1/4" 0-100 PSI
GB17100 Chrome Plated 3-1/2" Glass Bottom Mount 1/4" 0-100 PSI
8700-160 Chrome Plated 1-1/2" Glass Back Mount 1/8" 0-160 PSI
G18160 Chrome Plated 2" Glass Back Mount 1/8" 0-160 PSI
GB18160 Chrome Plated 2" Glass Bottom Mount 1/8" 0-160 PSI
G14160 Chrome Plated 2" Glass Back Mount 1/4" 0-160 PSI
GB14160 Chrome Plated 2" Glass Bottom Mount 1/4" 0-160 PSI
GB16160 Chrome Plated 2-1/2" Glass Bottom Mount 1/4" 0-160 PSI
GB17160 Chrome Plated 3-1/2" Glass Bottom Mount 1/4" 0-160 PSI
GB14200 Chrome Plated 2" Glass Bottom Mount 1/4" 0-200 PSI
GB16200 Chrome Plated 2-1/2" Glass Bottom Mount 1/4" 0-200 PSI
GB17200 Chrome Plated 3-1/2" Glass Bottom Mount 1/4" 0-200 PSI
G14300 Chrome Plated 2" Glass Back Mount 1/4" 0-300 PSI
GB14300 Chrome Plated 2" Glass Bottom Mount 1/4" 0-300 PSI
GB17300 Chrome Plated 3-1/2" Glass Bottom Mount 1/4" 0-300 PSI
GB17600 Chrome Plated 3-1/2" Glass Bottom Mount 1/4" 0-600 PSI
