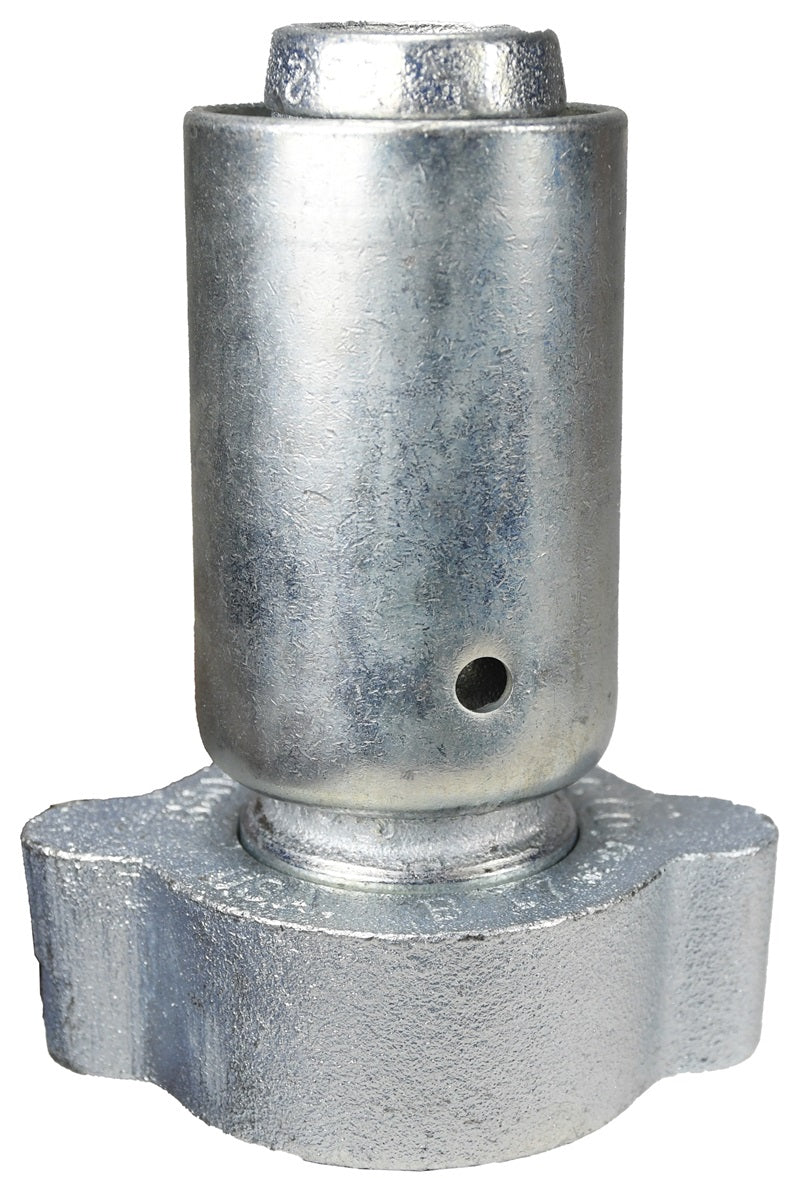

GB6-P2 by Dixon Valve | Boss® Holedall® Fitting | 3/4" Hose Shank (without Spud) | Hose ID: from 1-15/64" to 1-18/64" | Plated Iron/Steel

GB6-P2 by Dixon Valve | Boss® Holedall® Fitting | 3/4" Hose Shank (without Spud) | Hose ID: from 1-15/64" to 1-18/64" | Plated Iron/Steel

Save $2.26 Save $2.26
$33.75
$33.75 - $33.75
$33.75
$31.49
$31.49 - $31.49
$31.49

Dixon Valve
Boss® | Holedall® Fitting

Boss Holedall fittings are designed for air and liquid applications where a permanent, low profile clamping system is desired.
Specifications for Variant SKU: GB6-P2 Dixon
Brand: Boss, Holedall
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb
Material(s): Iron, Steel
Materials:
  • Fittings are supplied with carbon steel ferrules.
Safety Notes:
  • Not for steam service.
  • Worn-out hose couplings can be dangerous. They should be checked regularly and replace when necessary. Each coupling user should review applications and add safety devices where indicated.
Plated Iron / Steel
Part Number		 Plated Iron / Steel
without Spud
Part Number		 Stainless Steel
Part Number		 Size Hose O.D.
From To
GF26P1 GB6-P1 - 3/4" 1-10/64" 1-14/64"
GF26P2 GB6-P2 - 3/4" 1-15/64" 1-18/64"
GF26P3 GB6-P3 - 3/4" 1-19/64" 1-22/64"
GF36P1 GB11-P1 - 1" 1-30/64" 1-34/64"
GF36P2 GB11-P2 - 1" 1-35/64" 1-38/64"
GF36P3 GB11-P3 - 1" 1-39/64" 1-42/64"
GF61P1 GB21-P1 RGF61P1 1-1/2" 1-58/64" 2"
GF61P2 GB21-P2 RGF61P2 1-1/2" 2-1/64" 2-8/64"
GF61P3 GB21-P3 - 1-1/2" 2-9/64" 2-16/64"
GF81P1* GB26-P1 RGF81P1 2" 2-28/64" 2-40/64"
GF81P2* GB26-P2 RGF81P2 2" 2-41/64" 2-48/64"
GF81P3* GB26-P3 - 2" 2-49/64" 2-56/64"
GF111P1* GB36-P1 - 3" 3-30/64" 3-40/64"
GF111P2* GB36-P2 - 3" 3-41/64" 3-48/64"
GF111P3* GB36-P3 - 3" 3-49/64" 3-56/64"

* 2" and 3" have a machined shank.
