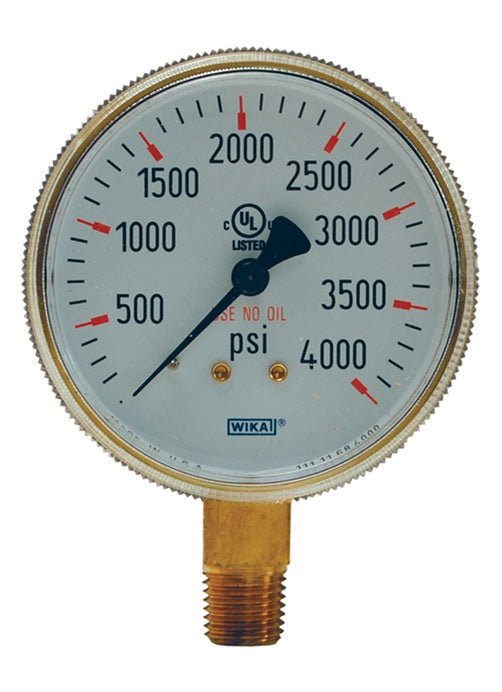

GBRW4000 by Dixon Valve | Welding Gauge | Lower Mount | 2-1/2" Face | 1/4" Lower Mount | 0-4000 PSI Range | Brass

Save $5.16

$54.39

$54.39 - $54.39

$54.39

$49.23

$49.23 - $49.23

$49.23

Dixon Valve
Dixon® Gauge | Welding Gauge | Lower Mount

Designed for long, reliable service under rugged conditions.

Typical applications include those on pumps, hydraulic and pneumatic systems, compressors, machine tools and many other installations where it is necessary to have a gauge with a non-corrosive movement.

Quantity

Specifications for Variant SKU: GBRW4000 Dixon
Series:	GBRW Series

Features:
± 3-2-3% accuracy according to ASME B40.100 Grade B. "USE NO OIL" written in red on face.
Materials:
Case: polished drawn stainless steel Window: twist-lock polycarbonate Bourdon tube: copper alloy
Specifications:
Ambient temperature range: -40°F to 140°F (-20°C to 60°C)
Term Meanings:
Figure Interval: Figure Interval (Increments between PSI numbers on gauge face). Gradient Interval: Graduation Interval (Fractional increments between PSI numbers on gauge face).

2-1/2" Face 1/4" Lower Mount Part Number	PSI Range	Figure Interval	Minor Gradient
GBRW30	0-30 PSI	5	0.5
GBRW30R*	0-30 PSI	5	0.5
GBRW60	0-60 PSI	10	1
GBRW100	0-100 PSI	20	2
GBRW200	0-200 PSI	50	5
GBRW400	0-400 PSI	100	10
GBRW600	0-600 PSI	100	10
GBRW4000	0-4000 PSI	500	100

* Red band between 15 to 30 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
