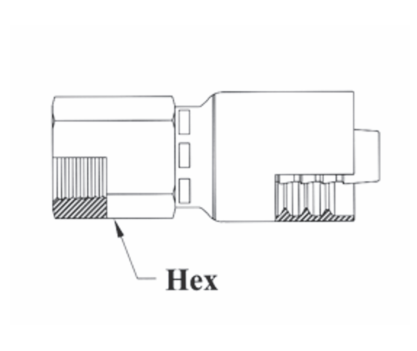

GC02-4x4 Couplamatic Grip Crimp Coupling - NPTF - Female Solid - 1/4" Hose ID - 1/4-18 Thread Size

GC02-4x4 by Couplamatic | Grip Crimp Coupling | 1/4" Hose ID x 1/4-18 Thread Size Female Solid NPTF | Straight | Trivalent Zinc Plating

Save $2.79 Save $2.79
$6.97
$6.97 - $6.97
$6.97
$4.18
$4.18 - $4.18
$4.18

Couplamatic Systems Inc.
Grip Crimp Series - NPTF - Female Solid
Specifications for Variant SKU: GC02-4x4 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Female NPTF, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating
Part Number Hose ID Pipe Size Thread Size Hex Size Cross Reference Part Numbers
Gates Mega Parker 43
GC02-4x2 1/4" 1/8" 1/8-27 5/8" 4G-2FP 10243-2-4
GC02-4x4 1/4" 1/4" 1/4-18 3/4" 4G-4FP 10243-4-4
GC02-6x4 3/8" 1/4" 1/4-18 3/4" 6G-4FP 10243-4-6
GC02-6x6 3/8" 3/8" 3/8-18 7/8" 6G-6FP 10243-6-6
GC02-6x8 3/8" 1/2" 1/2-14 1" 6G-8FP 10243-8-6
GC02-8x8 1/2" 1/2" 1/2-14 1" 8G-8FP 10243-8-8
GC02-12x12 3/4" 3/4" 3/4-14 1-1/4" 12G-12FP 10243-12-12

- Swivel for installation purposes only. Leakage may occur at low pressure.

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer.

Please check hose cut off factor, tube length, and tube drop carefully.
