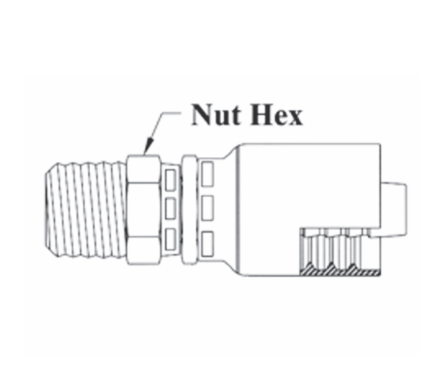

GC04-4x2 Couplamatic Grip Crimp Coupling - NPTF - Male Swivel - 1/4" Hose ID - 1/8-27 Thread Size

GC04-4x2 by Couplamatic | Grip Crimp Coupling | 1/4" Hose ID x 1/8-27 Thread Size Male Swivel NPTF | Straight | Trivalent Zinc Plating

Save $4.05 Save $4.05
$10.12
$10.12 - $10.12
$10.12
$6.07
$6.07 - $6.07
$6.07

Couplamatic Systems Inc.
Grip Crimp Series - NPTF - Male Swivel
Specifications for Variant SKU: GC04-4x2 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): Straight
Ends Configuration: 1/8in Male NPTF, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating
Part Number Hose ID Pipe Size Thread Size Nut Hex Cross Reference Part Numbers
Gates Mega Parker 43
GC04-4x2 1/4" 1/8" 1/8-27 5/8" 11343-2-4
GC04-4x4 1/4" 1/4" 1/4-18 5/8" 4G-4MPX 11343-4-4
GC04-4x6 1/4" 3/8" 3/8-18 3/4" 4G-6MPX 11343-6-4
GC04-6x4 3/8" 1/4" 1/4-18 3/4" 6G-4MPX 11343-4-6
GC04-6x6 3/8" 3/8" 3/8-18 3/4" 6G-6MPX 11343-6-6
GC04-6x8 3/8" 1/2" 1/2-14 7/8" 6G-8MPX 11343-8-6
GC04-8x6 1/2" 3/8" 3/8-18 3/4" 8G-6MPX 11343-6-8
GC04-8x8 1/2" 1/2" 1/2-14 7/8" 8G-8MPX 11343-8-8
GC04-12x12 3/4" 3/4" 3/4-14 1-1/4" 12G-12MPX 11343-12-12
GC04-16x16 1" 1" 1-11-1/2 1-3/8" 16G-16MPX 11343-16-16

- Swivel for installation purposes only. Leakage may occur at low pressure.

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer.

Please check hose cut off factor, tube length, and tube drop carefully.

Bite to the Wire Hydraulic Hose ends for:
100R1/1SN thin cover (57MB-1, 56MB-1) 100R2 Thin Cover (57MB-2, 56MB-2) 2SN 2SK HY-PLUS I (HPI), & III ( HPIII) 100R16/2SC (R16) Dura-Hyd R16 (DH16)
Dura-Hyd EX R16 (DHEX16) Ultra R16 (ULTRA-R16) 100R17 (R17 & R17R) Dura-Hyd R17 (DH17 & WDH17) 100R3 (3319A) Jack hose (Male NPTF Solid Only) (JH2)
