GC05-6x6 Couplamatic Grip Crimp Coupling - NPSM - Female Swivel - 3/8" Hose ID - 3/8-18 Thread Size

GC05-6x6 by Couplamatic | Grip Crimp Coupling | 3/8" Hose ID x 3/8-18 Thread Size Female Swivel NPSM | Straight | Trivalent Zinc Plating

Save $3.41 Save $3.41
$8.53
$8.53 - $8.53
$8.53
$5.12
$5.12 - $5.12
$5.12

Couplamatic Systems Inc.
Grip Crimp Series - NPSM - Female Swivel
Specifications for Variant SKU: GC05-6x6 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Female NPSM, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating

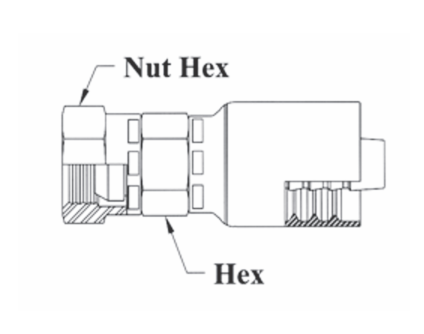

Part Number Hose ID Pipe Size Thread Size Hex Size Nut Hex Cross Reference Part Numbers
Gates Mega Parker 43
GC05-4x4 1/4" 1/4" 1/4-18 9/16" 11/16" 4G-4FPX 10743-4-4
GC05-6x6 3/8" 3/8" 3/8-18 11/16" 7/8" 6G-6FPX 10743-6-6
GC05-6x8 3/8" 1/2" 1/2-14 3/4" 1" - 10743-8-6
GC05-8x8 1/2" 1/2" 1/2-14 7/8" 1" 8G-8FPX 10743-8-8
GC05-12x12 3/4" 3/4" 3/4-14 1-1/8" 1-1/4" 12G-12FPX 10743-12-12
GC05-16x16 1" 1" 1-11-1/2 1-3/8" 1-1/2" 16G-16FPX 10743-16-16
GC05-20x20 1-1/4" 1-1/4" 1-1/4-11-1/2 1-11/16" 1-7/8" - 10743-20-20

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
