GC09-16x20 Couplamatic Grip Crimp Coupling - JIC 37° - Female Swivel - 1" Hose ID - 1-5/8x12 Thread Size

GC09-16x20 by Couplamatic | Grip Crimp Coupling | 1" Hose ID x 1-5/8x12 Thread Size JIC 37° Female Swivel | Straight | Trivalent Zinc Plating

Save $17.27 Save $17.27
$43.17
$43.17 - $43.17
$43.17
$25.90
$25.90 - $25.90
$25.90

Couplamatic Systems Inc.
Grip Crimp Series - JIC 37° - Female Swivel
Specifications for Variant SKU: GC09-16x20 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Female JIC, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating

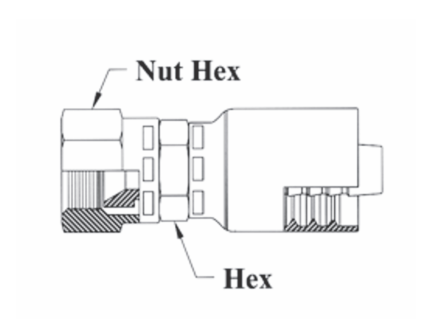

Part Number Hose ID Thread Size Tube OD Hex Size Nut Hex Cross Reference Part Numbers
Gates Mega Parker 43
GC09-4x4 1/4" 7/16x20 1/4" 9/16" 9/16" 4G-4FJX 10643-4-4
GC09-4x5 1/4" 1/2x20 5/16" 9/16" 5/8" 4G-5FJX 10643-5-4
GC09-4x6 1/4" 9/16x18 3/8" 9/16" 11/16" 4G-6FJX 10643-6-4
GC09-6x4 3/8" 7/16x20 1/4" 11/16" 9/16" 6G-4FJX 10643-4-6
GC09-6x6 3/8" 9/16x18 3/8" 11/16" 11/16" 6G-6FJX 10643-6-6
GC09-6x8 3/8" 3/4x16 1/2" 11/16" 7/8" 6G-8FJX 10643-8-6
GC09-6x10 3/8" 7/8x14 5/8" 7/8" 1" 6G-10FJX 10643-10-6
GC09-6x12 3/8" 1-1/16x12 3/4" 1" 1-1/4" 6G-12FJX 10643-12-6
GC09-8x6 1/2" 9/16x18 3/8" 7/8" 11/16" 8G-6FJX 10643-6-8
GC09-8x8 1/2" 3/4x16 1/2" 7/8" 7/8" 8G-8FJX 10643-8-8
GC09-8x10 1/2" 7/8x14 5/8" 7/8" 1" 8G-10FJX 10643-10-8
GC09-8x12 1/2" 1-1/16x12 3/4" 1-1/8" 1-1/4" 8G-12FJX 10643-12-8
GC09-8x16 1/2" 1-5/16x12 1" 1-1/4" 1-1/2" 8G-16FJX 10643-16-8
GC09-10x8 5/8" 3/4x16 1/2" 15/16" 7/8" 10G-8FJX 10643-8-10
GC09-10x10 5/8" 7/8x14 5/8" 15/16" 1" 10G-10FJX 10643-10-10
GC09-10x12 5/8" 1-1/16x12 3/4" 1-1/8" 1-1/4" 10G-12FJX 10643-12-10
GC09-12x10 3/4" 7/8x14 5/8" 1-1/8" 1" 12G-10FJX 10643-10-12
GC09-12x12 3/4" 1-1/16x12 3/4" 1-1/8" 1-1/4" 12G-12FJX 10643-12-12
GC09-12x14 3/4" 1-3/16x12 7/8" 1-3/8" 1-1/2" 12G-14FJX 10643-14-12
GC09-12x16 3/4" 1-5/16x12 1" 1-3/8" 1-1/2" 12G-16FJX 10643-16-12
GC09-16x12 1" 1-1/16x12 3/4" 1-3/8" 1-1/4" 16G-12FJX 10643-12-16
GC09-16x16 1" 1-5/16x12 1" 1-3/8" 1-1/2" 16G-16FJX 10643-16-16
GC09-16x20 1" 1-5/8x12 1-1/4" 1-11/16" 2" 16G-20FJX 10643-20-16
GC09-20x20 1-1/4" 1-5/8x12 1-1/4" 1-11/16" 2" 20G-20FJX 10643-20-20
GC09-24x24 1-1/2" 1-7/8x12 1-1/2" 2" 2-1/4" - 10643-24-24
GC09-32x32 2" 2-1/2x12 2" 2-1/2" 2-7/8" - 10643-32-32

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
