GC15-8x8 Couplamatic Grip Crimp Coupling - ORB - Male Swivel 90° - 1/2" Hose ID - 3/4x16 Thread Size

GC15-8x8 by Couplamatic | Grip Crimp Coupling | 1/2" Hose ID x 3/4x16 Thread Size ORB Male Swivel | 90° Elbow | Trivalent Zinc Plating

Save $9.80 Save $9.80
$24.50
$24.50 - $24.50
$24.50
$14.70
$14.70 - $14.70
$14.70

Couplamatic Systems Inc.
Grip Crimp Series - ORB - Male Swivel 90°
Specifications for Variant SKU: GC15-8x8 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Male O-Ring Boss, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating

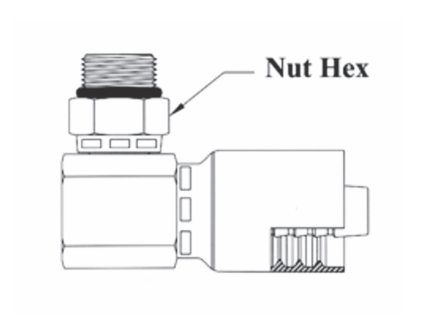

Part Number Hose ID Thread Size Tube OD Nut Hex Cross Reference Part Numbers
Gates Mega Parker 43
GC15-6x6 3/8" 9/16x18 3/8" 3/4" 6G-6MBX90 10L43-6-6
GC15-6x8 3/8" 3/4x16 1/2" 7/8" 6G-8MBX90 10L43-8-6
GC15-6x10 3/8" 7/8x14 5/8" 1" - -
GC15-8x8 1/2" 3/4x16 1/2" 7/8" 8G-8MBX90 10L43-8-8
GC15-8x10 1/2" 7/8x14 5/8" 1" 8G-10MBX90 10L43-10-8
GC15-12x12 3/4" 1-1/16x12 3/4" 1-1/4" - 10L43-12-12
GC15-16x16 1" 1-5/16x12 1" 1-1/2" - -

- Swivel for installation purposes only. Leakage may occur at low pressure.

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
