GC16-4x4 Couplamatic Grip Crimp Coupling - NPTF - Female Swivel - 1/4" Hose ID - 1/4-18 Thread Size

GC16-4x4 by Couplamatic | Grip Crimp Coupling | 1/4" Hose ID x 1/4-18 Thread Size NPTF Female Swivel | Straight | Trivalent Zinc Plating

Save $9.43 Save $9.43
$23.57
$23.57 - $23.57
$23.57
$14.14
$14.14 - $14.14
$14.14

Couplamatic Systems Inc.
Grip Crimp Series - NPTF - Female Swivel
Specifications for Variant SKU: GC16-4x4 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Female NPTF, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Grip Crimp — Bite to the Wire

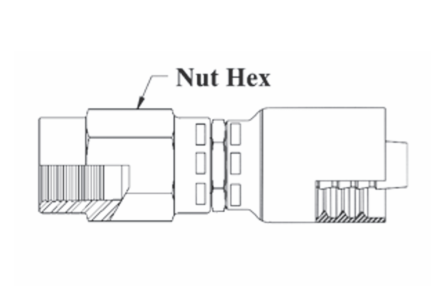

GC16 Grip Crimp Coupling — NPTF Female Swivel, Straight

GC16 is the NPTF Female Swivel, Straight configuration of the Grip Crimp system, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, 2SK, Hy-Plus I and III, 100R16/2SC, CS-Guard R16, Dura-Hyd R16 and EX, Ultra R16, 100R17, Dura-Hyd R17, 100R19, 100R3 and 100R4 hose.

1

What are the main product features?
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating
  • Bite to the wire — the shell grips the hose reinforcement directly for a secure, permanent termination.
  • Widest hose compatibility in the line — terminates one and two wire braid, spiral and fiber braid hose across the SAE range.
2

Which sizes are available?
Part Number Hose ID Pipe Size Thread Size Hex Size Nut Hex Cross Reference Part Numbers
Parker 43
GC16-4x4 1/4" 1/4" 1/4-18 5/8" 3/4" 1S243-4-4
GC16-6x6 3/8" 3/8" 3/8-18 11/16" 7/8" —
GC16-8x8 1/2" 1/2" 1/2-14 7/8" 1" —
GC16-12x12 3/4" 3/4" 3/4-14 1-1/8" 1-1/4" 1S243-12-12
i
- Swivel for installation purposes only. Leakage may occur at low pressure. The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
