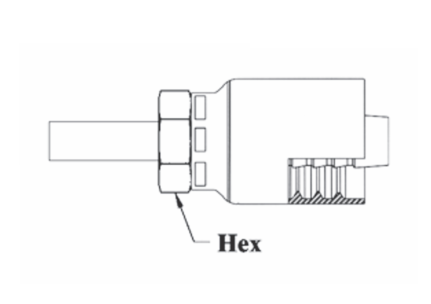

GC21-6x6 Couplamatic Grip Crimp Coupling - Standpipe - 3/8" Hose ID - 3/8" Tube Size

GC21-6x6 by Couplamatic | Grip Crimp Coupling | 3/8" Hose ID x 3/8" Tube Size Standpipe | Straight | Trivalent Zinc Plating

Save $4.69 Save $4.69
$11.72
$11.72 - $11.72
$11.72
$7.03
$7.03 - $7.03
$7.03

Couplamatic Systems Inc.
Grip Crimp Series - Standpipes
Specifications for Variant SKU: GC21-6x6 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Tube Stub, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating
Part Number Hose ID Tube Size Tube Rise Hex Size
GC21-4x4 1/4" 1/4" 1.10" 5/8"
GC21-6x6 3/8" 3/8" 1.30" 3/4"
GC21-8x8 1/2" 1/2" 1.58" 7/8"
GC21-10x10 5/8" 5/8" 1.34" 1"
Couplamatic Systems Inc

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
