GC23-6x6L Couplamatic Grip Crimp Coupling - SAE 45° Seat - 90° Female Swivel - 3/8" Hose ID - 5/8x18 Thread Size - 2.18" Drop

GC23-6x6L by Couplamatic | Grip Crimp Coupling | 3/8" Hose ID x 5/8x18 Thread Size SAE 45° Seat Female Swivel | 2.18" Drop | 90° Elbow | Trivalent Zinc Plating

Save $7.29 Save $7.29
$18.22
$18.22 - $18.22
$18.22
$10.93
$10.93 - $10.93
$10.93

Couplamatic Systems Inc.
Grip Crimp Series - SAE 45° Seat - 90° Female Swivel
Specifications for Variant SKU: GC23-6x6L Couplamatic
Series: Grip Crimp Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Female SAE 45 Flare, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating

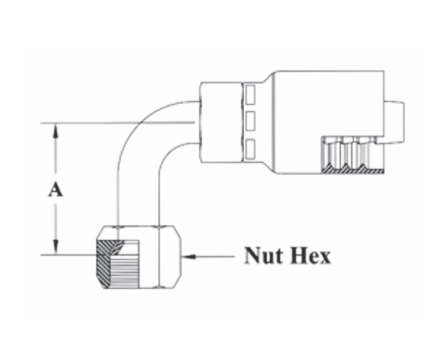

Part Number Hose ID Thread Size Tube OD A-DropInches Nut Hex Cross Reference Part Numbers
Gates Mega Parker 43
GC23-6x6 3/8" 5/8x18 3/8" 0.91" 3/4" 6G-6FSX90 17943-6-6
GC23-6x6L 3/8" 5/8x18 3/8" 2.18" 3/4" -

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
