GC24-12x12 Couplamatic Grip Crimp Coupling - JIC Seat - 90° Female Swivel Medium Drop - 3/4" Hose ID - 1-1/16x12 Thread Size

GC24-12x12 by Couplamatic | Grip Crimp Coupling | 3/4" Hose ID x 1-1/16x12 Thread Size JIC Seat Female Swivel Medium Drop | 90° Elbow | Trivalent Zinc Plating

Save $2.38 Save $2.38
$21.38
$21.38 - $21.38
$21.38
$19.00
$19.00 - $19.00
$19.00

Couplamatic Systems Inc.
Grip Crimp Series - JIC/SAE Dual Seat - 90° Female Swivel Medium Drop
Specifications for Variant SKU: GC24-12x12 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Female JIC, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating

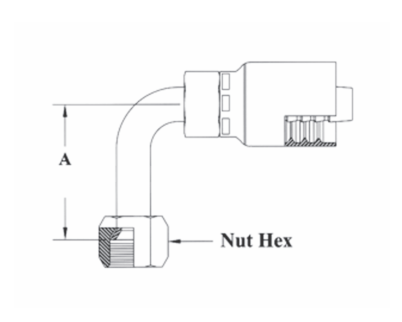

Part Number Hose ID Thread Size Tube OD A Drop Inches Nut Hex Cross Reference Part Numbers
Parker 43
GC24-4x4 1/4" 7/16x20 1/4" 1.26" 9/16" 1L943-4-4
GC24-6x6* 3/8" 9/16x18 3/8" 1.50" 11/16" 1L943-6-6
GC24-8x8 1/2" 3/4x16 1/2" 1.63" 7/8" 1L943-8-8
GC24-12x12* 3/4" 1-1/16x12 3/4" 2.28" 1-1/4" 1L943-12-12
GC24-16x16* 1" 1-5/16x12 1" 2.79" 1-1/2" 1L943-16-16

*JIC Seat and thread only

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
