GC27-8x8 Couplamatic Grip Crimp Coupling - JIC/SAE Dual Seat - 90° Female Swivel Long Drop - 1/2" Hose ID - 3/4x16 Thread Size

GC27-8x8 by Couplamatic | Grip Crimp Coupling | 1/2" Hose ID x 3/4x16 Thread Size JIC/SAE Dual Seat Female Swivel Long Drop | 90° Elbow | Trivalent Zinc Plating | Pack of 5

Save $7.46

$67.12

$67.12 - $67.12

$67.12

$59.66

$59.66 - $59.66

$59.66

Couplamatic Systems Inc.
Grip Crimp Series - JIC/SAE Dual Seat - 90° Female Swivel Medium Drop

Package Quantity: 5 EA

Quantity

Specifications for Variant SKU: GC27-8x8 Couplamatic \| 5 \|
Series:	Grip Crimp Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Female JIC, 1/2in Hose Barb, 1/2in Female SAE 45 Flare
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| 2SN Series \| 2SK Series \| HPI Series \| HPIII Series \| R16 Series \| DH16 Series \| DHEX16 Series \| ULTRA-R16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series \| JH2 Series

Description:
Grip Crimp couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating

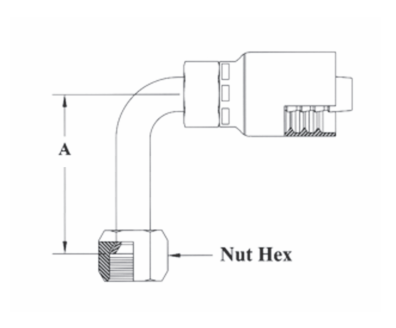

Part Number	Hose ID	Thread Size	Tube OD	A Drop Inches	Nut Hex	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	A Drop Inches	Nut Hex	Gates Mega	Parker 43
GC27-4x4	1/4"	7/16x20	1/4"	1.80"	9/16"	4G-4FJX90L	14143-4-4
GC27-4x5	1/4"	1/2x20	5/16"	1.80"	5/8"	-	14143-5-4
GC27-4x6	1/4"	9/16x18	3/8"	2.18"	11/16"	-	14143-6-4
GC27-6x4	3/8"	7/16x20	1/4"	1.80"	9/16"	-	-
GC27-6x6*	3/8"	9/16x18	3/8"	2.18"	11/16"	6G-6FJX90L	14143-6-6
GC27-6x8	3/8"	3/4x16	1/2"	2.50"	7/8"	-	14143-8-6
GC27-8x8	1/2"	3/4x16	1/2"	2.50"	7/8"	8G-8FJX90L	14143-8-8
GC27-8x10	1/2"	7/8x14	5/8"	2.75"	1"	8G-10FJX90L	14143-10-8
GC27-10x10	5/8"	7/8x14	5/8"	2.75"	1"	-	14143-10-10
GC27-12x12*	3/4"	1-1/16x12	3/4"	3.73"	1-1/4"	12G-12FJX90L	14143-12-12
GC27-16x16	1"	1-5/16x12	1"	4.50"	1-1/2"	16G-16FJX90L	14143-16-16

*JIC Seat and thread only

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
