GC32-8x10 Couplamatic Grip Crimp Coupling - O-Ring Face Seal (ORF) - 90° Female Swivel - 1/2" Hose ID - 1x14 Thread Size

GC32-8x10 by Couplamatic | Grip Crimp Coupling | 1/2" Hose ID x 1x14 Thread Size O-Ring Face Seal | ORF Female Swivel | 90° Elbow | Trivalent Zinc Plating

Save $1.81 Save $1.81
$16.28
$16.28 - $16.28
$16.28
$14.47
$14.47 - $14.47
$14.47

Couplamatic Systems Inc.
Grip Crimp Series - O-Ring Face Seal (ORF) - 90° Female Swivel
Specifications for Variant SKU: GC32-8x10 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Female O-Ring Face Seal, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating

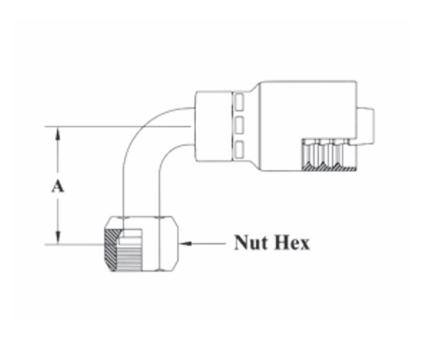

Part Number Hose ID Thread Size Tube OD A-DropInches Nut Hex Cross Reference Part Numbers
Gates Mega Parker 43
GC32-4x4 1/4" 9/16x18 1/4" 0.80" 11/16" 4G-4FFORX90S 1J943-4-4
GC32-4x6 1/4" 11/16x16 3/8" 0.90" 13/16" 4G-6FFORX90S 1J943-6-4
GC32-6x4 3/8" 9/16x18 1/4" 0.78" 11/16" 6G-4FFORX90S 1J943-4-6
GC32-6x6 3/8" 11/16x16 3/8" 0.90" 13/16" 6G-6FFORX90S 1J943-6-6
GC32-6x8 3/8" 13/16x16 1/2" 1.15" 15/16" 6G-8FFORX90S 1J943-8-6
GC32-8x6 1/2" 11/16x16 3/8" 0.90" 13/16" 8G-6FFORX90S 1J943-6-8
GC32-8x8 1/2" 13/16x16 1/2" 1.15" 15/16" 8G-8FFORX90S 1J943-8-8
GC32-8x10 1/2" 1x14 5/8" 1.27" 1-1/8" 8G-10FFORX90S 1J943-10-8
GC32-10x10 5/8" 1x14 5/8" 1.27" 1-1/8" 10G-10FFORX90S 1J943-10-10
GC32-10x12 5/8" 1-3/16x12 3/4" 1.88" 1-3/8" 10G-12FFORX90S 1J943-12-10
GC32-12x10 3/4" 1x14 5/8" 1.27" 1-1/8" 12G-10FFORX90S 1J943-10-12
GC32-12x12 3/4" 1-3/16x12 3/4" 1.88" 1-3/8" 12G-12FFORX90S 1J943-12-12
GC32-12x16 3/4" 1-7/16x12 1" 2.20" 1-5/8" - 1J943-16-12
GC32-16x16 1" 1-7/16x12 1" 2.20" 1-5/8" 16G-16FFORX90S 1J943-16-16
GC32-20x20 1-1/4" 1-11/16x12 1-1/4" 2.51" 1-7/8" 20G-20FFORX90S 1J943-20-20

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
