GC43-12x12 Couplamatic Grip Crimp Coupling - BSPP - British Standard Parallel 60° Cone - 45° Bend - Female Swivel - 3/4" Hose ID - G-3/4-14 Thread Size - 3/4" BSPP

GC43-12x12 by Couplamatic | Grip Crimp Coupling | 3/4" Hose ID x G-3/4-14 Thread Size 60° Cone Female Swivel | 3/4" BSPP | 45° Elbow | Trivalent Zinc Plating

Save $19.56 Save $19.56
$48.90
$48.90 - $48.90
$48.90
$29.34
$29.34 - $29.34
$29.34

Couplamatic Systems Inc.
Grip Crimp Series - BSPP - British Standard Parallel 60° Cone - 45° Bend Female Swivel
Specifications for Variant SKU: GC43-12x12 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): 45 Degree
Ends Configuration: 3/4in Female BSPP, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • G. as part of thread size is ISO designation for parallel thread.
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating

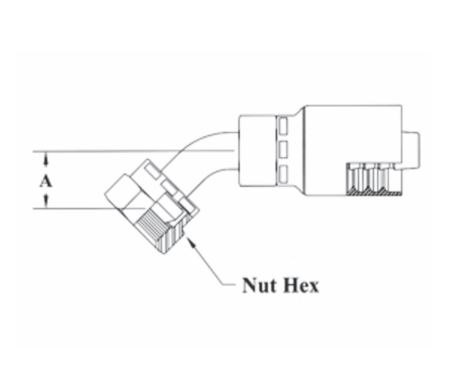

Part Number Hose ID BSPP Size Thread Size A-DropInches Nut Hex Cross Reference Part Numbers
Gates Mega Parker 43
GC43-4x4* 1/4" 1/4" G-1/4-19 0.91" 3/4" 4G-4FBSPORX45 1B143-4-4
GC43-6x6* 3/8" 3/8" G-3/8-19 0.90" 7/8" 6G-6FBSPORX45 1B143-6-6
GC43-8x8* 1/2" 1/2" G-1/2-14 0.87" 1" 8G-8FBSPORX45 1B143-8-8
GC43-12x12* 3/4" 3/4" G-3/4-14 1.31" 1-1/4" 12G-12FBSPORX45 1B143-12-12

*Does not have groove for optional O-ring

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
