GC46-10x10 Couplamatic Grip Crimp Coupling - BSPP - British Standard Parallel 60° Cone - 90° Bend - Female Swivel - 5/8" Hose ID - G-5/8-14 Thread Size - 5/8" BSPP

GC46-10x10 by Couplamatic | Grip Crimp Coupling | 5/8" Hose ID x G-5/8-14 Thread Size Female Swivel | 5/8" BSPP | 90° Elbow | Trivalent Zinc Plating

Save $2.78

$25.04

$25.04 - $25.04

$25.04

$22.26

$22.26 - $22.26

$22.26

Couplamatic Systems Inc.
Grip Crimp Series - BSPP - British Standard Parallel 60° Cone - 90° Bend Female Swivel

Quantity

Specifications for Variant SKU: GC46-10x10 Couplamatic
Series:	Grip Crimp Series
Shape (Orientation):	90 Degree
Ends Configuration:	5/8in Female BSPP, 5/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| 2SN Series \| 2SK Series \| HPI Series \| HPIII Series \| R16 Series \| DH16 Series \| DHEX16 Series \| ULTRA-R16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series \| JH2 Series

Description:
G. as part of thread size is ISO designation for parallel thread. Grip Crimp couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating

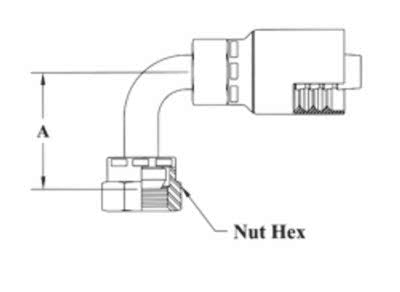

Part Number	Hose ID	BSPP Size	Thread Size	A-DropInches	Nut Hex	Cross Reference Part Numbers
Part Number	Hose ID	BSPP Size	Thread Size	A-DropInches	Nut Hex	Gates Mega	Parker 43
GC46-4x4*	1/4"	1/4"	G-1/4-19	1.50"	3/4"	4G-4FBSPORX90	1B243-4-4
GC46-6x6*	3/8"	3/8"	G-3/8-19	1.60"	7/8"	6G-6FBSPORX90	1B243-6-6
GC46-8x8*	1/2"	1/2"	G-1/2-14	1.89"	1"	8G-8FBSPORX90	1B243-8-8
GC46-10x10*	5/8"	5/8"	G-5/8-14	1.83"	1-3/16"	10G-10FBSPORX90	1B243-10-10
GC46-12x12*	3/4"	3/4"	G-3/4-14	2.55"	1-1/4"	12G-12FBSPORX90	1B243-12-12
GC46-16x16*	1"	1"	G-1-11	2.98"	1-1/2"	16G-16FBSPORX90	1B243-16-16

*Does not have groove for optional O-ring

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
