GC53-8x8 Couplamatic Grip Crimp Coupling - Code 61 Split Flange - 90° Bend - 1/2" Hose ID - 1/2" Flange Size

GC53-8x8 by Couplamatic | Grip Crimp Coupling | 1/2" Hose ID x 1/2" Split Flange Size | Code 61 | 90° Elbow | Trivalent Zinc Plating

Save $2.31

$23.13

$23.13 - $23.13

$23.13

$20.82

$20.82 - $20.82

$20.82

Couplamatic Systems Inc.
Grip Crimp Series - Code 61 Split Flange - 90° Bend

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: GC53-8x8 Couplamatic
Series:	Grip Crimp Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Code 61 Flange, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| 2SN Series \| 2SK Series \| HPI Series \| HPIII Series \| R16 Series \| DH16 Series \| DHEX16 Series \| ULTRA-R16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series \| JH2 Series

Description:
Grip Crimp couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating

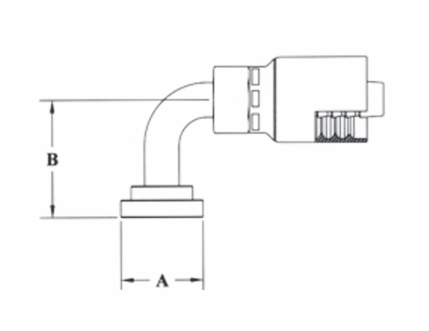

Part Number	Hose ID	Flange Size	A-Dia Inches	B-Drop Inches	Cross Reference Part Numbers
Part Number	Hose ID	Flange Size	A-Dia Inches	B-Drop Inches	Gates Mega	Parker 43
GC53-8x8	1/2"	1/2"	1.19"	1.62"	8G-8FL90	11943-8-8
GC53-8x12	1/2"	3/4"	1.50"	1.68"	8G-12FL90M	11943-12-8
GC53-12x12	3/4"	3/4"	1.50"	2.12"	12G-12FL90	11943-12-12
GC53-12x16	3/4"	1"	1.75"	2.12"	12G-16FL90	11943-16-12
GC53-16x16	1"	1"	1.75"	2.38"	16G-16FL90	11943-16-16
GC53-16x20	1"	1-1/4"	2.00"	2.38"	16G-20FL90	11943-20-16
GC53-20x20	1-1/4"	1-1/4"	2.00"	2.62"	20G-20FL90	11943-20-20

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
