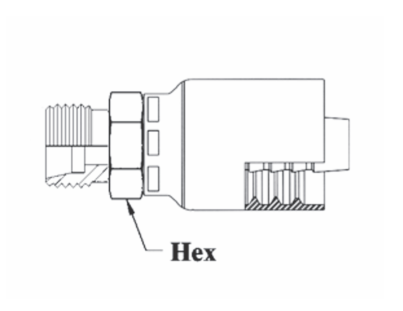

GC66-12x22 Couplamatic Grip Crimp Coupling - DIN Light 24° Seat - Male Solid - 3/4" Hose ID - M30x2.0 Thread Size

GC66-12x22 by Couplamatic | Grip Crimp Coupling | 3/4" Hose ID x M30x2.0 Thread Size DIN Light 24° Seat Male Solid | Straight | Trivalent Zinc Plating

Save $13.68 Save $13.68
$34.20
$34.20 - $34.20
$34.20
$20.52
$20.52 - $20.52
$20.52

Couplamatic Systems Inc.
Grip Crimp Series - DIN Light 24° Seat - Male Solid
Specifications for Variant SKU: GC66-12x22 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): Straight
Ends Configuration: L22 Male DIN, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating
Part Number Hose ID Thread Size Tube OD Hex Size Cross Reference Part Numbers
Gates Mega Parker 43
GC66-4x8 1/4" M14x1.5 8mm 5/8" 4G-8MDL 1D043-8-4
GC66-6x10 3/8" M16x1.5 10mm 3/4" 6G-10MDL 1D043-10-6
GC66-6x12 3/8" M18x1.5 12mm 3/4" 6G-12MDL 1D043-12-6
GC66-8x15 1/2" M22x1.5 15mm 7/8" 8G-15MDL 1D043-15-8
GC66-10x18 5/8" M26x1.5 18mm 1-1/16" - 1D043-18-10
GC66-12x22 3/4" M30x2.0 22mm 1-1/4" 12G-22MDL 1D043-22-12

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
