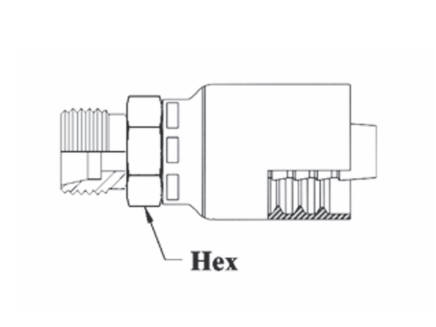

GC67-6x12 Couplamatic Grip Crimp Coupling - DIN Heavy 24° Seat - Male Solid - 3/8" Hose ID - M20x1.5 Thread Size

GC67-6x12 by Couplamatic | Grip Crimp Coupling | 3/8" Hose ID x M20x1.5 Thread Size DIN Heavy 24° Seat Male Solid | Straight | Trivalent Zinc Plating

Save $6.26 Save $6.26
$15.65
$15.65 - $15.65
$15.65
$9.39
$9.39 - $9.39
$9.39

Couplamatic Systems Inc.
Grip Crimp Series - DIN Heavy 24° Seat - Male Solid
Specifications for Variant SKU: GC67-6x12 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): Straight
Ends Configuration: S12 Male DIN, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating
Part Number Hose ID Thread Size Tube Size Hex Size Cross Reference Part Numbers
Gates Mega Parker 43
GC67-4x8 1/4" M16x1.5 8mm 5/8" 4G-8MDH 1D243-8-4
GC67-4x10 1/4" M18x1.5 10mm 11/16" 4G-10MDH 1D243-10-4
GC67-6x10 3/8" M18x1.5 10mm 3/4" - -
GC67-6x12 3/8" M20x1.5 12mm 13/16" 6G-12MDH 1D243-12-6
GC67-6x14 3/8" M22x1.5 14mm 7/8" - 1D243-14-6
GC67-8x16 1/2" M24x1.5 16mm 7/8" 8G-16MDH 1D243-16-8
GC67-10x20 5/8" M30x2.0 20mm 1-1/4" - 1D243-20-10

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
