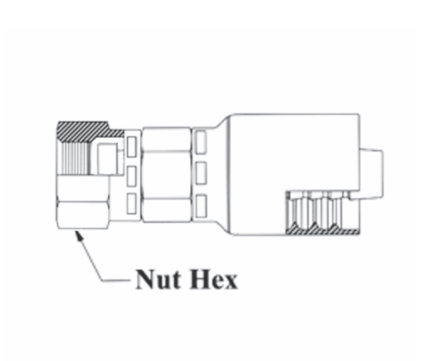

GC75-6x6 Couplamatic Grip Crimp Coupling - O-Ring Face Seal (ORF) - Female Swivel Short Rise - 3/8" Hose ID - 11/16x16 Thread Size

GC75-6x6 by Couplamatic | Grip Crimp Coupling | 3/8" Hose ID x 11/16x16 Thread Size O-Ring Face Seal | ORF Female Swivel Short Rise | Straight | Trivalent Zinc Plating

Save $0.64 Save $0.64
$5.76
$5.76 - $5.76
$5.76
$5.12
$5.12 - $5.12
$5.12

Couplamatic Systems Inc.
Grip Crimp Series - O-Ring Face Seal (ORF) - Female Swivel Short Rise
Specifications for Variant SKU: GC75-6x6 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Female O-Ring Face Seal, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating
Part Number Hose ID Thread Size Tube OD Hex Size Nut Hex
GC75-4x4 1/4" 9/16x18 1/4" 9/16" 11/16"
GC75-4x6 1/4" 11/16x16 3/8" 5/8" 13/16"
GC75-6x6 3/8" 11/16x16 3/8" 11/16" 13/16"
GC75-6x8 3/8" 13/16x16 1/2" 3/4" 15/16"
GC75-8x8 1/2" 13/16x16 1/2" 13/16" 15/16"
GC75-8x10 1/2" 1x14 5/8" 15/16" 1-1/8"
GC75-10x10 5/8" 1x14 5/8" 15/16" 1-1/8"
GC75-10x12 5/8" 1-3/16x12 3/4" 1-1/8" 1-3/8"
GC75-12x12 3/4" 1-3/16x12 3/4" 1-1/8" 1-3/8"
GC75-12x16 3/4" 1-7/16x12 1" 1-3/8" 1-5/8"
GC75-16x16 1" 1-7/16x12 1" 1-3/8" 1-5/8"
GC75-20x20 1-1/4" 1-11/16x12 1-1/4" 1-11/16" 1-7/8"
