GH120-6 Aeroquip by Danfoss | MatchMate® ICE Premium Low Temperature Double Wire Braid Hydraulic Hose | SAE 100R16 | 0.38" ID

GH120-6 Aeroquip by Danfoss | MatchMate® ICE Premium Low Temperature Double Wire Braid Hydraulic Hose | SAE 100R16 | 0.38" ID

$7.82 - $7.82
$7.82
$7.82 - $7.82
$7.82

Aeroquip® by Danfoss

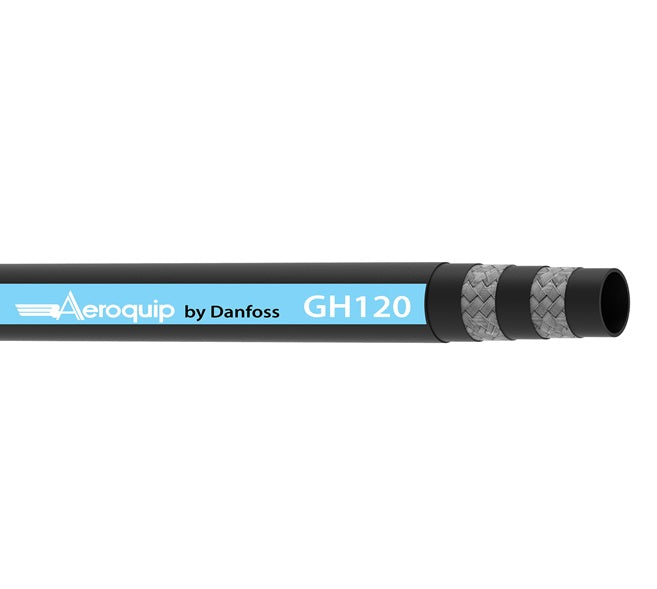

GH120 Series | MatchMate® ICE Premium Low Temperature Double Wire Braid Hydraulic Hose

For use in frigid environments on construction equipment and other mobile applications.

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.


Sold as Bulk Footage at no Exact Length. Purchased Quantity may come in multiple lengths.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: GH120-6 Danfoss
Brand: Aeroquip
Series: GH120 Series
Hose Color(s): Black
Dash Size: -6
Internal Diameter: 0.38in
Outer Diameter: 0.68in
Tubing Construction: Special Proprietary
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: Applicable MSHA Standards, EN45545, EN857, SAE 100R16
Hose Properties:
Application: Low temperature flexing and hydraulic system service with petroleum and water-based fluids. SAE Rating: Meets or exceeds: SAE 100R16 Types, EN 857 Type 2SC, ISO 11237-1 Type 2SC performance.
Other Ratings: MSHA Accepted Tube: Special Low-Temperature Synthetic Rubber
Reinforcement: Double Wire Braid Cover: DURA-TUFF™ Synthetic Rubber
Temperature Range: -70°F to +212°F
(-57°C to +100°C)
Part Number Hose ID Nominal Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft
GH120-4 6 6,4mm 0.25" 13,8mm 0.54" 414,0 bar 6000 psi 1656,0 bar 24025 psi 51,0mm 2.00" 0,30 kg/m 0.20 lbs/ft
GH120-6 10 9,5mm 0.38" 17,4mm 0.68" 345,0 bar 5000 psi 1380,0 bar 20025 psi 64,0mm 2.50" 0,40 kg/m 0.27 lbs/ft
GH120-8 12 12,7mm 0.50" 20,8mm 0.82" 310,0 bar 4500 psi 1240,0 bar 18000 psi 89,0mm 3.50" 0,58 kg/m 0.39 lbs/ft
GH120-10 16 15,9mm 0.62" 24,9mm 0.98" 276,0 bar 4000 psi 1104,0 bar 16000 psi 102,0mm 4.00" 0,74 kg/m 0.50 lbs/ft
GH120-12 19 19,0mm 0.75" 28,4mm 1.12" 241,0 bar 3500 psi 964,0 bar 14000 psi 121,0mm 4.75" 0,92 kg/m 0.62 lbs/ft
GH120-16 25 25,4mm 1.00" 35,7mm 1.41" 193,0 bar 2800 psi 772,0 bar 11200 psi 152,0mm 6.00" 1,22 kg/m 0.82 lbs/ft
GH120-20 31 31,8mm 1.25" 43,3mm 1.71" 159,0 bar 2300 psi 636,0 bar 9225 psi 210,0mm 8.25" 1,59 kg/m 1.07 lbs/ft
GH120-24 38 38,1mm 1.50" 51,5mm 2.03" 138,0 bar 2000 psi 552,0 bar 8000 psi 254,0mm 10.00" 2,11 kg/m 1.42 lbs/ft
GH120-32 51 50,8mm 2.00" 63,9mm 2.51" 103,0 bar 1500 psi 412,0 bar 6000 psi 318,0mm 12.50" 2,80 kg/m 1.88 lbs/ft

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
