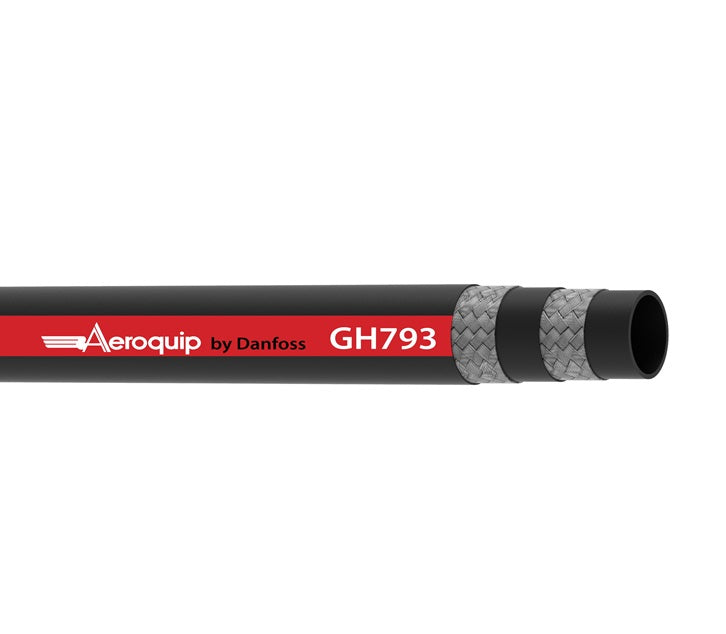

GH793-16 Aeroquip by Danfoss | MatchMate® Global Double Wire Braid Hydraulic Hose | SAE 100R2 | 1.00" ID

$19.95

Aeroquip® by Danfoss
GH793 Series | MatchMate® Global Double Wire Braid Hydraulic Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.


Bulk Lengths may come in multiple sections unless otherwise stated.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: GH793-16 Danfoss
Brand: Aeroquip
Series: GH793 Series
Hose Color(s): Black
Dash Size: -16
Internal Diameter: 1in
Outer Diameter: 1.5in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: Applicable MSHA Standards, DNV, EN853, ISO 1436-1, SAE 100R2AT Type S
Hose Properties:
Application: Hydraulic system service with petroleum and water-based fluids, for general industrial service. SAE Rating: Meets: SAE 100R2 Type S, EN 853 (Type 2SN), DIN 2022, Teil 4 (Type 2SN)
Other Ratings: N/A Tube: Special Low Temperature Synthetic Rubber
Reinforcement: Double Wire Braid Cover: DURA-TUFF™ Synthetic Rubber
Temperature Range: -40°F to +260°F
(-40°C to +127°C)

Part Number Hose ID Nominal Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft
GH793-4 6 6,4mm 0.25" 15,2mm 0.60" 448,0 bar
350,0 bar
6500 psi*
5000 psi
1792,0 bar
1400,0 bar
26000 psi*
20000 psi
101,6mm 4.00" 0,39 kg/m 0.26 lbs/ft
GH793-6 10 9,7mm 0.38" 19,1mm 0.75" 400,0 bar
280,0 bar
5800 psi*
4000 psi
1600,0 bar
1120,0 bar
23200 psi*
16000 psi
127,0mm 5.00" 0,57 kg/m 0.38 lbs/ft
GH793-8 12 12,7mm 0.50" 22,1mm 0.87" 345,0 bar
245,0 bar
5000 psi*
3500 psi
1380,0 bar
980,0 bar
20000 psi*
14000 psi
177,8mm 7.00" 0,68 kg/m 0.46 lbs/ft
GH793-10 16 16,0mm 0.63" 24,9mm 0.98" 276,0 bar
192,0 bar
4000 psi*
2750 psi
1104,0 bar
770,0 bar
16000 psi*
11000 psi
203,2mm 8.00" 0,80 kg/m 0.54 lbs/ft
GH793-12 19 19,1mm 0.75" 29,5mm 1.16" 241,0 bar
157,0 bar
3500 psi*
2250 psi
964,0 bar
630,0 bar
14000 psi*
9000 psi
241,3mm 9.50" 0,98 kg/m 0.66 lbs/ft
GH793-16 25 25,4mm 1.00" 38,1mm 1.50" 207,0 bar
140,0 bar
3000 psi*
2000 psi
828,0 bar
560,0 bar
12000 psi*
8000 psi
304,8mm 12.00" 1,50 kg/m 1.01 lbs/ft
GH793-20 31 31,8mm 1.25" 48,8mm 1.92" 172,0 bar 2500 psi 688,0 bar 10000 psi 419,1mm 16.50" 2,29 kg/m 1.54 lbs/ft
GH793-24 38 38,1mm 1.50" 54,6mm 2.15" 138,0 bar 2000 psi 552,0 bar 8000 psi 508,0mm 20.00" 2,50 kg/m 1.68 lbs/ft
GH793-32 51 50,8mm 2.00" 63,8mm 2.51" 110,0 bar 1600 psi 440,0 bar 6400 psi 635,0mm 25.00" 3,30 kg/m 2.22 lbs/ft

* Improved pressure performance when used with global crimp fittings.

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
