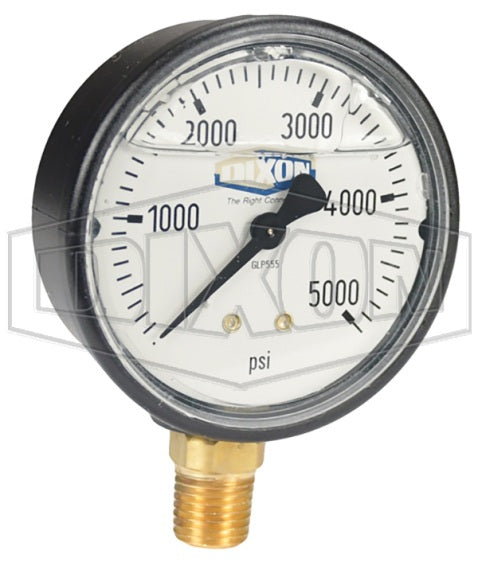

GLP555 by Dixon Valve | Liquid Filled Gauge | Lower Mount | 2-1/2" Face | 1/4" Lower Mount | 0-5000 PSI Range | ABS Plastic Case

Save $14.61

$36.53

$36.53 - $36.53

$36.53

$21.92

$21.92 - $21.92

$21.92

Dixon Valve
Dixon® Gauge | Liquid Filled Gauge with ABS Case | Lower Mount

Designed for long, reliable service under rugged conditions.

Typical applications include those on pumps, hydraulic and pneumatic systems, compressors, machine tools and many other installations where it is necessary to have a gauge with a non-corrosive movement.

Specifications for Variant SKU: GLP555 Dixon
Series:	GLP Series

Features:
ASME B40.100, Grade B (± 3-2-3% accuracy).
Materials:
Case: ABS plastic
Specifications:
Temperature range: -4°F to 140°F (-20°C to 60°C)
Term Meanings:
Figure Interval: Figure Interval (Increments between PSI numbers on gauge face). Gradient Interval: Graduation Interval (Fractional increments between PSI numbers on gauge face).

2-1/2" Face 1/4" Lower Mount Part Number	PSI Range	Figure Interval (Hg / PSI)	Minor Gradient (Hg / PSI)
GLP500	0-15 PSI	3	0.2
GLP505	0-30 PSI	5	0.5
GLP510	0-60 PSI	10	1
GLP515	0-100 PSI	20	2
GLP517	0-160 PSI	20	2
GLP520	0-200 PSI	50	5
GLP525	0-300 PSI	50	5
GLP527	0-400 PSI	100	10
GLP530	0-600 PSI	100	10
GLP535	0-1000 PSI	200	20
GLP540	0-1500 PSI	300	20
GLP545	0-2000 PSI	500	50
GLP550	0-3000 PSI	500	50
GLP555	0-5000 PSI	1000	100

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
