GM28 by Dixon Valve | Boss® Ground Joint | Male Spud | 2" Male NPT x Wing Nut Thread | Plated Iron

GM28 by Dixon Valve | Boss® Ground Joint | Male Spud | 2" Male NPT x Wing Nut Thread | Plated Iron

Save $3.95 Save $3.95
$42.27
$42.27 - $42.27
$42.27
$38.32
$38.32 - $38.32
$38.32

Dixon Valve
Boss® | Boss Ground Joint Male Spud

Boss couplings are all-purpose hose couplings, universally recommended for steam hose connections. They are also widely used for air, water, fluid petroleum, chemicals and liquid petroleum gas up to 1" ID.

Boss couplings can be applied to many types of rubber, synthetic, plastic, metallic or semi-metallic hose.
Specifications for Variant SKU: GM28 Dixon
Brand: Boss
Shape (Orientation): Straight
Ends Configuration: 2in Male NPT, 2in GJ Wing Nut Thread
Material(s): Iron
Seal Material(s): Misc. Polymer
Features:

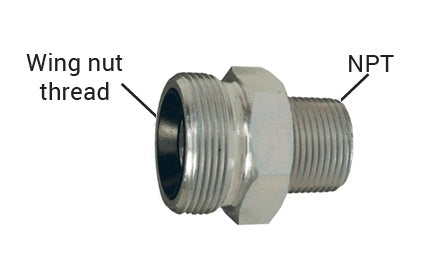

  • The spud part of the coupling serves as one half of the Boss Ground Joint connection and is usually fixed to the equipment. The stem part that is clamped to the hose is the other half. The two halves are connected or disconnected by rotating the wing nut on the spud. When connected they achieve both a mechanical, and a pressure seal.
  • Easy to seal.
Use:
  • Boss couplings supply a convenient threaded fitting to connect two lengths of hose, or a single length to a male or female threaded outlet.
  • Use with Boss Ground Joint fittings.
Safety Notes:
  • Worn-out hose couplings can be dangerous. They should be checked regularly and replace when necessary. Each coupling user should review applications and add safety devices where indicated.
    • Note. Pressurized steam is an extremely dangerous commodity. Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used!
  • Never use an unapproved item for steam service. Always follow the manufacturer's product recommendations for pressurized steam handling.
Specifications:
  • Recommended for steam service up to 450°F (232°C).
Plated Steel
Part Number		 Plated Iron
Part Number		 Size Seat
GBC* - 3/8" Copper
GM3 - 1/2" Polymer
GM8 - 3/4" Polymer
GM13 - 1" Polymer
- GM18 1-1/4" Polymer
- GM23 1-1/2" Polymer
- GM28 2" Polymer
- GM33 2-1/2" Polymer
- GM38 3" Polymer

* 1/4", 3/8", and 6" available only with copper seat spuds, all other sizes have polymer seats.
