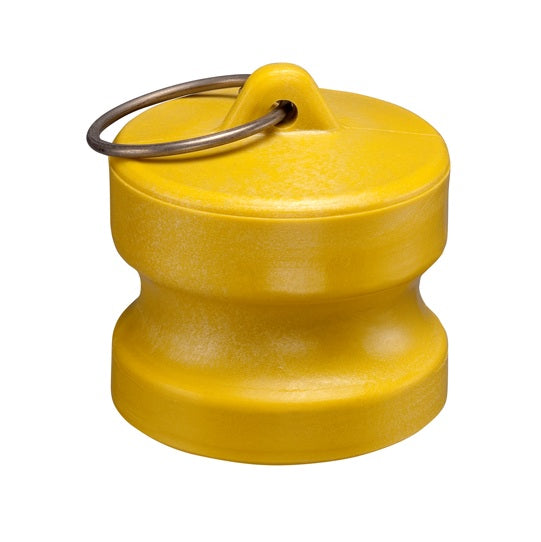

GRDP400 by Kuriyama | GRDP Series | Part DP | Cam & Groove Dust Plug | 4" Size | Nylon

Save $9.24

$29.85

$29.85 - $29.85

$29.85

$20.61

$20.61 - $20.61

$20.61

Kuriyama of America Inc.
Cam & Groove (Camlock) Dust Plug | GRDP Series | Part DP | Nylon

Kuriyama Camlock Couplings are intended for use in many industrial applications.

Nylon camlocks are used in industrial and agricultural applications where heat and moisture are of concern.

Specifications for Variant SKU: GRDP400 Kuriyama
Series:	GRDP Series
Cam Type:	Type DP
Ends Configuration:	4in Male Cam & Groove
Material(s):	Nylon

What are the Applications?

Nylon camlocks are used in industrial and agricultural applications where heat and moisture are of concern.
Nylon has similar performance characteristics to polypropylene, but it can withstand higher temperatures, variable humidity, and has some additional chemical resistance versus the polypropylene.

What are the Features?

Nylon material is fiberglass reinforced for added strength and durability.
Good abrasion and chemical resistance.
Lightweight yet strong.
Precision molded to ensure consistency in form and function.

What are the Materials?

Fiberglass reinforced nylon.
Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.

Part Number	Size (in)	PSI Rating at 70°F	Weight Each (lbs)
GRDP100	1"	100 PSI	0.06 lbs
GRDP150	1-1/2"	100 PSI	0.12 lbs
GRDP200	2"	100 PSI	0.20 lbs
GRDP300	3"	50 PSI	0.36 lbs
GRDP400	4"	50 PSI	0.60 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
