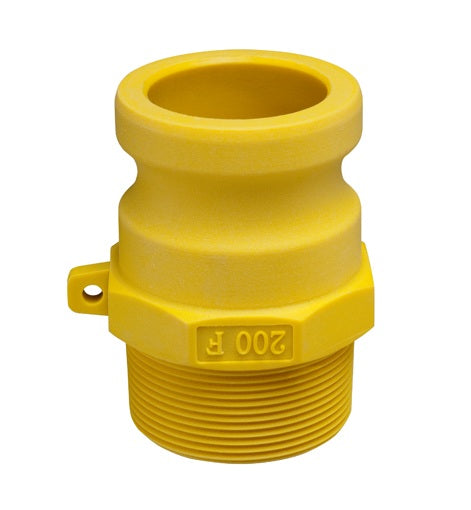

GRF300 by Kuriyama | GRF Series | Part F | Cam & Groove Adapter | 3" Adapter x 3" Male NPT | Nylon

Save $7.89

$21.63

$21.63 - $21.63

$21.63

$13.74

$13.74 - $13.74

$13.74

Kuriyama of America Inc.
Cam & Groove (Camlock) Fitting | GRF Series | Part F | Adapter x Male NPT | Nylon

Kuriyama Camlock Couplings are intended for use in many industrial applications.

Nylon camlocks are used in industrial and agricultural applications where heat and moisture are of concern.

Specifications for Variant SKU: GRF300 Kuriyama
Series:	GRF Series
Shape (Orientation):	Straight
Cam Type:	Type F
Ends Configuration:	3in Male Cam & Groove, 3in Male NPT
Material(s):	Nylon

What are the Applications?

Nylon camlocks are used in industrial and agricultural applications where heat and moisture are of concern.
Nylon has similar performance characteristics to polypropylene, but it can withstand higher temperatures, variable humidity, and has some additional chemical resistance versus the polypropylene.

What are the Features?

Nylon material is fiberglass reinforced for added strength and durability.
Good abrasion and chemical resistance.
Lightweight yet strong.
Precision molded to ensure consistency in form and function.

What are the Materials?

Fiberglass reinforced nylon.
Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.

Part Number	Size (in)	PSI Rating at 70°F	Weight Each (lbs)
GRF100	1"	100 PSI	0.10 lbs
GRF150	1-1/2"	100 PSI	0.18 lbs
GRF200	2"	100 PSI	0.28 lbs
GRF300	3"	50 PSI	0.66 lbs
GRF400	4"	50 PSI	0.90 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
