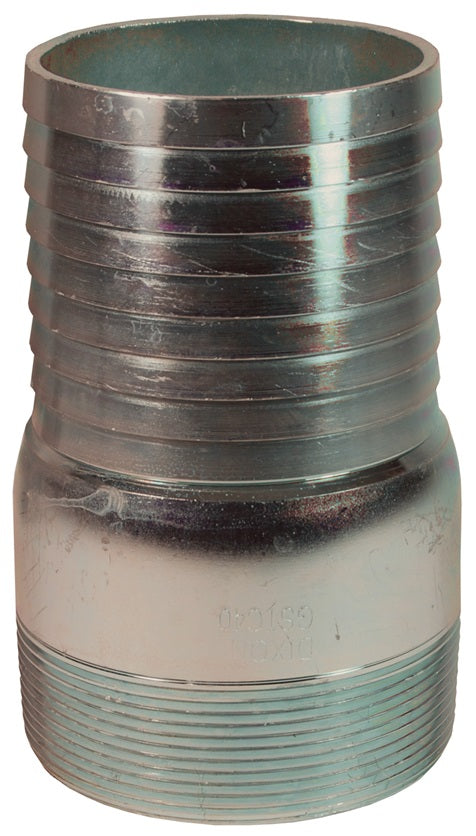

GSTC40 by Dixon Valve | Global King Combination Nipple | 4" Male NPT x 4" Hose ID | Plated Steel

GSTC40 by Dixon Valve | Global King Combination Nipple | 4" Male NPT x 4" Hose ID | Plated Steel

Save $13.73 Save $13.73
$34.33
$34.33 - $34.33
$34.33
$20.60
$20.60 - $20.60
$20.60

Dixon Valve
Global King Combination Nipple | Male NPT x Hose Barb

Recommended for low-pressure discharge and suction service for compatible liquids.
Specifications for Variant SKU: GSTC40 Dixon
Shape (Orientation): Straight
Ends Configuration: 4in Male NPT, 4in Hose Barb
Material(s): Plated Steel
Safety Notes:
  • King Combination Nipples are not recommended for steam.
  • 1-1/4" and above are not for compressible products such as air or nitrogen.
  • The working pressure may vary with the construction of the hose, the type of clamping system used and the application.
  • In accordance with the Association for Rubber Products Manufacturers (ARPM) bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for fifteen minutes without leaking or coupling movement, for additional information and detailed instruction on testing procedures, see the Association for Rubber Products Manufacturers (ARPM) handbook.
Plated Steel
Part Number		 Size
GSTC1 1/2"
GSTC5 3/4"
GSTC10 1"
GSTC15 1-1/4"
GSTC20 1-1/2"
GSTC25 2"
GSTC30 2-1/2"
GSTC35 3"
GSTC40 4"
GSTC50 5"
GSTC60 6"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
