GW09-8x6 Couplamatic GW Series Coupling - JIC 37° - Female Swivel - 1/2" Hose ID - 9/16x18 Thread

GW09-8x6 by Couplamatic | GW Series Coupling | 1/2" Hose ID x 9/16x18 Thread JIC 37° Female Swivel | Straight | Trivalent Zinc Plating

Save $4.95 Save $4.95
$12.37
$12.37 - $12.37
$12.37
$7.42
$7.42 - $7.42
$7.42

Couplamatic Systems Inc.
GW Series - JIC 37° - Female Swivel
Specifications for Variant SKU: GW09-8x6 Couplamatic
Series: GW Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Female JIC, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series  |   2SN Series
Description:
  • NO SKIVE REQUIRED.
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating

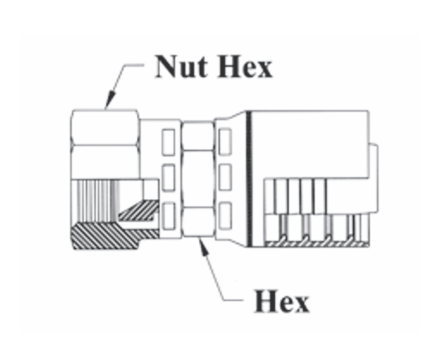

Part Number Hose ID Tube OD Thread Size Hex Size Cross Reference Part Numbers
Weatherhead 430U
GW09-8x6 1/2" 3/8" 9/16x18 7/8" 11/16" 43008U-606
GW09-8x8 1/2" 1/2" 3/4x16 7/8" 7/8" 43008U-608
GW09-8x10 1/2" 5/8" 7/8x14 7/8" 1" 43008U-610
GW09-8x12 1/2" 3/4" 1-1/16x12 1-1/8" 1-1/4" 43008U-612
GW09-12x12 3/4" 3/4" 1-1/16x12 1-1/8" 1-1/4" 43012U-612
GW09-12x14 3/4" 7/8" 1-3/16x12 1-1/4" 1-1/2" 43012U-614
GW09-12x16 3/4" 1" 1-5/16x12 1-3/8" 1-1/2" 43012U-616
GW09-16x12 1" 3/4" 1-1/16x12 1-3/8" 1-1/4" 43016U-612
GW09-16x16 1" 1" 1-5/16x12 1-3/8" 1-1/2" 43016U-616
GW09-16x20 1" 1-1/4" 1-5/8x12 1-11/16" 2" 43016U-620
GW09-20x20 1-1/4" 1-1/4" 1-5/8x12 1-11/16" 2" 43020U-620
GW09-20x24 1-1/4" 1-1/2" 1-7/8x12 1-7/8" 2-1/4" 43020U-624
GW09-24x24 1-1/2" 1-1/2" 1-7/8x12 2" 2-1/4" 43024U-624
GW09-32x32 2" 2" 2-1/2x12 2-1/2" 2-7/8" 43032U-632

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
