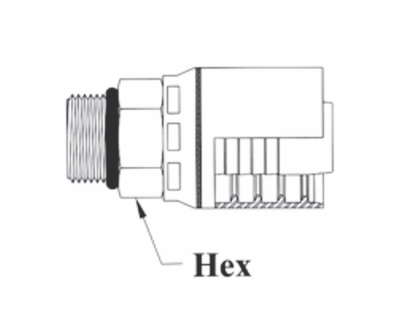

GW11-16x16 Couplamatic GW Series Coupling - ORB - Male Solid - 1" Hose ID - 1-5/16x12 Thread

GW11-16x16 by Couplamatic | GW Series Coupling | 1" Hose ID x 1-5/16x12 Thread ORB Male Solid | Straight | Trivalent Zinc Plating

Save $13.87 Save $13.87
$34.67
$34.67 - $34.67
$34.67
$20.80
$20.80 - $20.80
$20.80

Couplamatic Systems Inc.
GW Series - ORB - Male Solid
Specifications for Variant SKU: GW11-16x16 Couplamatic
Series: GW Series
Shape (Orientation): Straight
Ends Configuration: 1in Male O-Ring Boss, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series  |   2SN Series
Description:
  • NO SKIVE REQUIRED.
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating
Part Number Hose ID Tube Size Thread Size Hex Size Cross Reference Part Numbers
Weatherhead 430U
GW11-12x12 3/4" 3/4" 1-1/16x12 1-1/8" -
GW11-16x16 1" 1" 1-5/16x12 1-1/2" 43016U-P16

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
