GW27-12x12 Couplamatic GW Series Coupling - JIC 37° - 90° Long Drop Female Swivel - 3/4" Hose ID - 1-1/16x12 Thread

GW27-12x12 by Couplamatic | GW Series Coupling | 3/4" Hose ID x 1-1/16x12 Thread JIC 37° Long Drop Female Swivel | 90° Elbow | Trivalent Zinc Plating

Save $18.01 Save $18.01
$45.02
$45.02 - $45.02
$45.02
$27.01
$27.01 - $27.01
$27.01

Couplamatic Systems Inc.
GW Series - JIC 37° - 90° Long Drop Female Swivel
Specifications for Variant SKU: GW27-12x12 Couplamatic
Series: GW Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Female JIC, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series  |   2SN Series
GW Series — 100R12 No-Skive Spiral

GW27 GW Series — JIC 37°, Female Swivel, Long Drop 90° Elbow

GW27 is the JIC 37°, Female Swivel, Long Drop 90° Elbow configuration of the GW Series, terminating SAE 100R12 four spiral hose and 1-1/2" to 2" 100R2 thin cover hose.

1

What are the main product features?
  • NO SKIVE REQUIRED
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating
  • Bite to the wire — the shell grips the hose reinforcement directly.
  • Also covers large 100R2 — the recommended system for 1-1/2" and 2" 100R2 thin cover hose.
2

Which sizes are available?

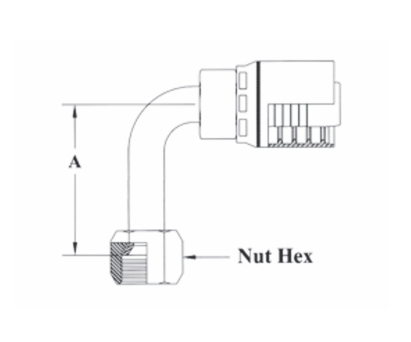

Part Number Hose ID Tube Size Thread Size A-Drop Inches Nut Hex
GW27-12x12 3/4" 3/4" 1-1/16x12 3.73" 1-1/4"
GW27-16x16 1" 1" 1-5/16x12 4.50" 1-1/2"
