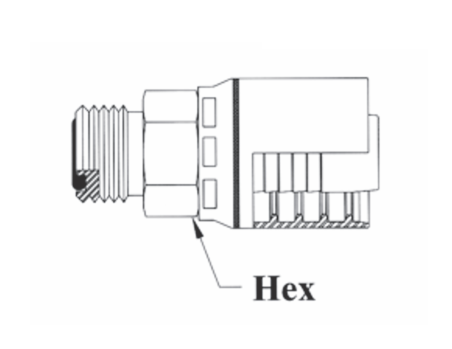

GW29-12x12 Couplamatic GW Series Coupling - O-Ring Face Seal (ORF) - Male Solid - 3/4" Hose ID - 1-3/16x12 Thread

GW29-12x12 by Couplamatic | GW Series Coupling | 3/4" Hose ID x 1-3/16x12 Thread O-Ring Face Seal | ORF Male Solid | Straight | Trivalent Zinc Plating

Save $9.46 Save $9.46
$23.65
$23.65 - $23.65
$23.65
$14.19
$14.19 - $14.19
$14.19

Couplamatic Systems Inc.
GW Series - O-Ring Face Seal (ORF) - Male Solid
Specifications for Variant SKU: GW29-12x12 Couplamatic
Series: GW Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Male O-Ring Face Seal, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series  |   2SN Series
Description:
  • NO SKIVE REQUIRED.
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating
  • Couplings are capped with O-ring included.
Part Number Hose ID Tube Size Thread Size Hex Size Cross Reference Part Numbers
Weatherhead 430U
GW29-8x8 1/2" 1/2" 13/16x16 7/8" 43008U-E68
GW29-12x12 3/4" 3/4" 1-3/16x12 1-1/4" 43012U-E72
GW29-16x16 1" 1" 1-7/16x12 1-1/2" 43016U-E76

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
