GW32-12x10 Couplamatic GW Series Coupling - O-Ring Face Seal (ORF) - 90° Female Swivel - 3/4" Hose ID - 1x14 Thread

GW32-12x10 by Couplamatic | GW Series Coupling | 3/4" Hose ID x 1x14 Thread O-Ring Face Seal | ORF Female Swivel | 90° Elbow | Trivalent Zinc Plating

Save $18.20

$45.50

$45.50 - $45.50

$45.50

$27.30

$27.30 - $27.30

$27.30

Couplamatic Systems Inc.
GW Series - O-Ring Face Seal (ORF) - 90° Female Swivel

Specifications for Variant SKU: GW32-12x10 Couplamatic
Series:	GW Series
Shape (Orientation):	90 Degree
Ends Configuration:	5/8in Female O-Ring Face Seal, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	SP580 Series \| CS-FLEX 4 Series \| DHEXR12 Series \| CS-FLEX 5 Series \| 2SN Series

Description:
NO SKIVE REQUIRED. The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully. Trivalent Zinc Plating

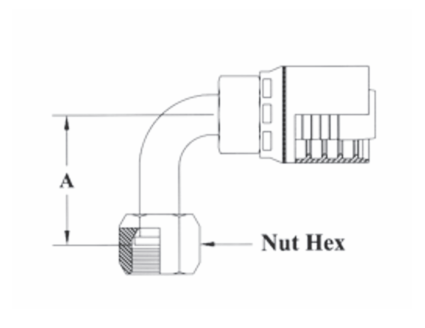

Part Number	Hose ID	Tube Size	Thread Size	A-Drop Inches	Hex Size	Cross Reference Part Numbers
Part Number	Hose ID	Tube Size	Thread Size	A-Drop Inches	Hex Size	Weatherhead 430U
GW32-8x8	1/2"	1/2"	13/16x16	1.15"	15/16"	43008U-A28
GW32-8x10	1/2"	5/8"	1x14	1.27"	1-1/8"	43008U-A30
GW32-12x10	3/4"	5/8"	1x14	1.27"	1-1/8"	43012U-A30
GW32-12x12	3/4"	3/4"	1-3/16x12	1.88"	1-3/8"	43012U-A32
GW31-12x16	3/4"	1"	1-7/16x12	2.20"	1-5/8"	-
GW32-16x16	1"	1"	1-7/16x12	2.20"	1-5/8"	43016U-A36
GW32-20x20	1-1/4"	1-1/4"	1-11/16x12	2.51"	1-7/8"	43020U-A40

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
