GW47-20x24 Couplamatic GW Series Coupling - Code 61 Split Flange - Straight - 1-1/4" Hose ID - 1-1/2" Flange Size

GW47-20x24 by Couplamatic | GW Series Coupling | 1-1/4" Hose ID x 1-1/2" Split Flange Size | Code 61 | Straight | Trivalent Zinc Plating

Save $7.40 Save $7.40
$66.63
$66.63 - $66.63
$66.63
$59.23
$59.23 - $59.23
$59.23

Couplamatic Systems Inc.
GW Series - Code 61 Split Flange - Straight
Specifications for Variant SKU: GW47-20x24 Couplamatic
Series: GW Series
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Code 61 Flange, 1-1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series  |   2SN Series
Description:
  • NO SKIVE REQUIRED.
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating

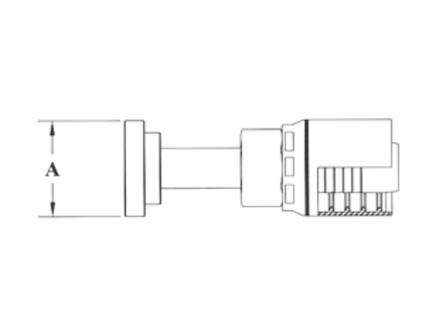

Part Number Hose ID Flange Size A-Dia Inches Cross Reference Part Numbers
Weatherhead 430U
GW47-8x8 1/2" 1/2" 1.19" 43008U-G08
GW47-8x12 1/2" 3/4" 1.50" 43008U-G12
GW47-12x12 3/4" 3/4" 1.50" 43012U-G12
GW47-12x16 3/4" 1" 1.75" 43012U-G16
GW47-16x16 1" 1" 1.75" 43016U-G16
GW47-16x20 1" 1-1/4" 2.00" 43016U-G20
GW47-20x20 1-1/4" 1-1/4" 2.00" 43020U-G20
GW47-20x24 1-1/4" 1-1/2" 2.38" 43020U-G24
GW47-24x24 1-1/2" 1-1/2" 2.38" 43024U-G24
GW47-32x32 2" 2" 2.81" 43032U-G32

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
