GW48-16x16 Couplamatic GW Series Coupling - Code 61 Split Flange - 22-1/2° Bend - 1" Hose ID - 1" Flange Size

GW48-16x16 by Couplamatic | GW Series Coupling | 1" Hose ID x 1" Split Flange Size | Code 61 | 22-1/2° Elbow | Trivalent Zinc Plating

Save $4.11

$36.99

$36.99 - $36.99

$36.99

$32.88

$32.88 - $32.88

$32.88

Couplamatic Systems Inc.
GW Series - Code 61 Split Flange - 22-1/2° Bend

Quantity

Specifications for Variant SKU: GW48-16x16 Couplamatic
Series:	GW Series
Shape (Orientation):	22.5 Degree
Ends Configuration:	1in Code 61 Flange, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	SP580 Series \| CS-FLEX 4 Series \| DHEXR12 Series \| CS-FLEX 5 Series \| 2SN Series

Description:
NO SKIVE REQUIRED. The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully. Trivalent Zinc Plating

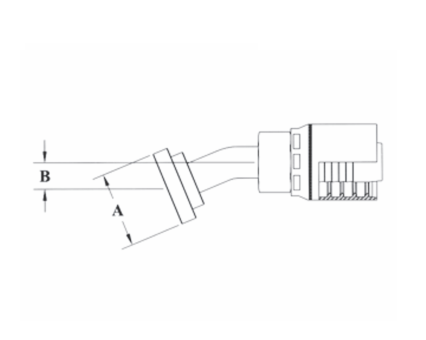

Part Number	Hose ID	Flange Size	A-Dia Inches	B-Drop Inches	Cross Reference Part Numbers
Part Number	Hose ID	Flange Size	A-Dia Inches	B-Drop Inches	Weatherhead 430U
GW48-12x12	3/4"	3/4"	1.50"	0.44"	43012U-H02
GW48-12x16	3/4"	1"	1.75"	0.44"	43012U-H03
GW48-16x16	1"	1"	1.75"	0.45"	43016U-H03
GW48-16x20	1"	1-1/4"	2.00"	0.45"	43016U-H04
GW48-20x20	1-1/4"	1-1/4"	2.00"	0.50"	43020U-H04

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
