GW56-20x20 Couplamatic GW Series Coupling - Code 61 Split Flange - 110° Bend - 1-1/4" Hose ID - 1-1/4" Flange Size

GW56-20x20 by Couplamatic | GW Series Coupling | 1-1/4" Hose ID x 1-1/4" Split Flange Size | Code 61 | 110° Elbow | Trivalent Zinc Plating

Save $46.43

$116.08

$116.08 - $116.08

$116.08

$69.65

$69.65 - $69.65

$69.65

Couplamatic Systems Inc.
GW Series - Code 61 Split Flange - 110° Bend Long Drop

Specifications for Variant SKU: GW56-20x20 Couplamatic
Series:	GW Series
Shape (Orientation):	110 Degree
Ends Configuration:	1-1/4in Code 61 Flange, 1-1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	SP580 Series \| CS-FLEX 4 Series \| DHEXR12 Series \| CS-FLEX 5 Series \| 2SN Series

Description:
NO SKIVE REQUIRED. The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully. Trivalent Zinc Plating

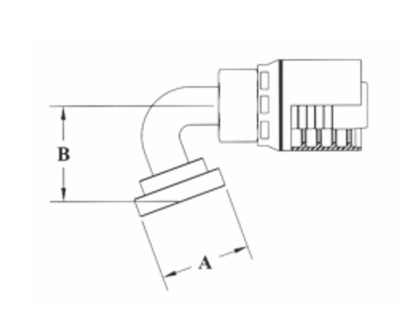

Part Number	Hose ID	Flange Size	A-Dia Inches	B-Drop Inches	Cross Reference Part Numbers
Part Number	Hose ID	Flange Size	A-Dia Inches	B-Drop Inches	Weatherhead 430U
GW56-16x16	1"	1"	1.75"	2.89"	43016U-H83
GW56-20x20	1-1/4"	1-1/4"	2.00"	3.12"	43020U-H84

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
