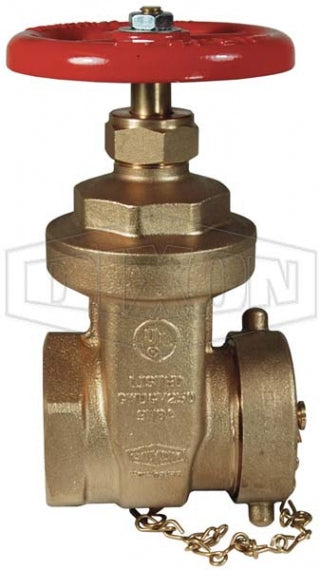

GWDGV250F Dixon Non-Rising Stem Wedge Disc Gate Valve - 2-1/2" Female NPT Inlet x 2-1/2" Male NST(NH) Outlet (Global)

GWDGV250F Dixon Non-Rising Stem Wedge Disc Gate Valve - 2-1/2" Female NPT Inlet x 2-1/2" Male NST(NH) Outlet (Global)

Save $17.47 Save $17.47
$213.17
$213.17 - $213.17
$213.17
$195.70
$195.70 - $195.70
$195.70

Dixon Fire Fittings
Global Non-Rising Stem Wedge Disc Gate Valve - Cast DZR Brass

UL listed and FM approved.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: GWDGV250F Dixon
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Female NPT, 2-1/2in Male NST
Material(s): Brass
Features:
  • Working pressure: 300 PSI (2069 kPa).
  • Non-rising stem.
  • Cast brass with solid wedge disc and tapered seats.
  • Red iron wheel handle with cap and chain (cap not supplied on non-standard threads).
  • Furnished with 2-1/2" NST brass cap and chain.
  • Alloy = DZR brass.
Part Number Inlet Outlet A B C D Weight
(Lbs.)
GWDGV250F 2-1/2" Female NPT 2-1/2" Male NST(NH) 5" 7-3/4" 2-1/2" 10" 9.1500
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
