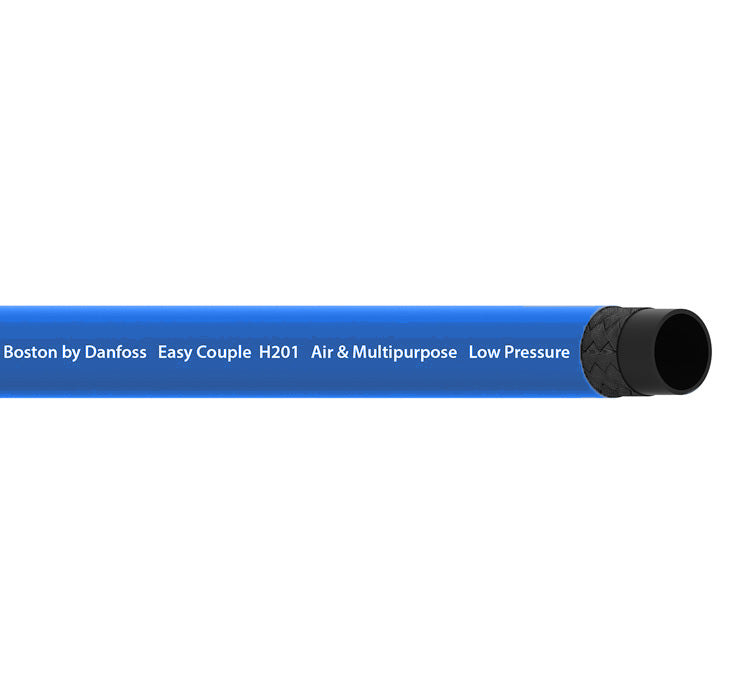

H20108BU Boston by Danfoss | H201 Series | Low Pressure SOCKETLESS™ Hose | 0.50" ID | Blue | 50ft Length

H20108BU Boston by Danfoss | H201 Series | Low Pressure SOCKETLESS™ Hose | 0.50" ID | Blue | 50ft Length

$183.99 - $183.99
$183.99
$183.99 - $183.99
$183.99

Boston by Danfoss
H201 Series Easy Couple| Low Pressure SOCKETLESS™ General Purpose Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.


Package Quantity: 50 ft

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: H20108BU Danfoss | 50 |
Brand: Boston
Series: H201 Series
Hose Color(s): Blue
Internal Diameter: 0.50in
Outer Diameter: 0.75in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Hose Properties:
Application: Fuel, lubricating oils, air and water.
In-plant robotic manufacturing.
Air lines and air tools.		 Tube: Nitrile
Other Ratings: Red, green, and black are MSHA approved. Cover: Neoprene (black hose)
Vinyl Nitrile (colored hose)
Reinforcement: Single Textile Braid Temperature Range: -40°F to +260°F
(-40°C to +127°C)
Air & Water Applications
Temperature Range:		 -40°F to +212°F
(-40°C to +100°C)		 Oil Applications
Temperature Range:		 - 40°F to +260°F
(-40°C to +127°C)
Part
Number
Black		 Part
Number
Blue		 Part
Number
Green		 Part
Number
Gray		 Part
Number
Red		 Part
Number
Yellow		 Hose ID Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight Length Vacuum
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft ft in/Hg
H20104BK H20104BU H20104GN H20104GY H20104RD H20104YW 6 6,4mm 0.25" 12,7mm 0.50" 21,0 bar 300 psi 84,0 bar 1200 psi 76,2mm 3.00" 0,13 kg/m 0.09 lbs/ft 250 ft 28 in/Hg
H20106BK H20106BU H20106GN H20106GY H20106RD H20106YW 10 9,5mm 0.38" 16,7mm 0.65" 21,0 bar 300 psi 84,0 bar 1200 psi 76,2mm 3.00" 0,19 kg/m 0.13 lbs/ft 50 ft 28 in/Hg
H20108BK H20108BU H20108GN H20108GY H20108RD H20108YW 13 12,7mm 0.50" 19,1mm 0.75" 21,0 bar 300 psi 84,0 bar 1200 psi 127,0mm 5.00" 0,22 kg/m 0.15 lbs/ft 50 ft 28 in/Hg
H20110BK H20110BU H20110GN H20110GY H20110RD H20110YW 16 15,9mm 0.63" 23,8mm 0.93" 21,0 bar 300 psi 84,0 bar 1200 psi 152,4mm 6.00" 0,34 kg/m 0.23 lbs/ft 50 ft 28 in/Hg
H20112BK H20112BU H20112GN H20112GY H20112RD H20112YW 19 19,1mm 0.75" 26,2mm 1.03" 21,0 bar 300 psi 84,0 bar 1200 psi 152,4mm 6.00" 0,39 kg/m 0.26 lbs/ft 50 ft 28 in/Hg
H20116BK H20116BU - - - - 25 25,4mm 1.00" 35,0mm 1.39" 14,0 bar 200 psi 55,0 bar 800 psi 254,0mm 10.00" 0,57 kg/m 0.38 lbs/ft 50 ft 18 in/Hg

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
