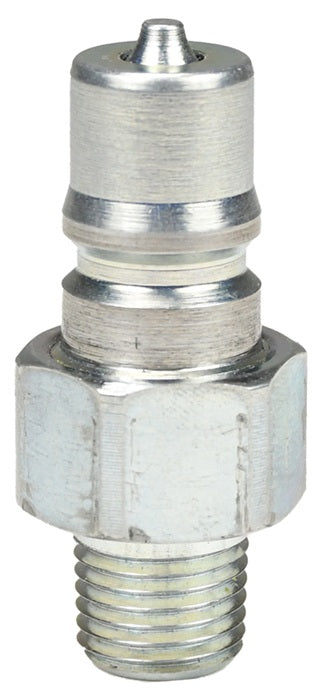

H2M2 by Dixon Valve | Hydraulic Quick Disconnect Coupling | H-Series | 1/4" Male NPTF x 1/4" ISO-B Interchange | Plug | Steel

Save $1.40

$16.71

$16.71 - $16.71

$16.71

$15.31

$15.31 - $15.31

$15.31

Dixon Valve & Coupling
Hydraulic Coupling: H-Series ISO-B Interchange Plug (Male Threads)

Quantity

Specifications for Variant SKU: H2M2 Dixon
Series:	H-Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male ISO-B QD Interchange, 1/4in Male NPTF
Material(s):	Steel

Compatibility & Interchange:	Designed to ISO7241-B Interchangeable with Parker-Hannifin 60 Series, Snap-Tite 72-Series, Hansen HK-Series, Faster Series 'HNV', Danfoss/Aeroquip/Eaton FD45, Stucchi Series IRB/IRBO/IRBX
Construction:	Machined components are manufactured using solid bar stock. Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life. Steel componentry is plated using ROHS Compliant Trivalent Chrome. Steel nipples are hardened to provide heavy duty performance and resist brinelling.
Features:	Poppet style shut-off valves Designed to prevent fluid loss when disconnected.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

H-Series \| ISO-B Interchange Plug (Male Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Maximum OD	Hex	Max. Opertaing Pressure	Burst Pressure
H2M2	Plug/Male	1/4"	1/4" - 18 Male NPTF	Steel	2.04" (51.82mm)	0.97" (24.64mm)	7/8"	-	20000 PSI
H2M3	Plug/Male	1/4"	3/8" - 18 Male NPTF	Steel	2.03" (51.6mm)	0.83" (21.1mm)	3/4"	5000 PSI (345 bar)	22500 PSI (1550 bar)
H4M6-S	Plug/Male	1/2"	3/4" - 14 Male NPTF	303 Stainless	2.13" (58.7mm)	1.17" (29.7mm)	1-1/16"	3500 PSI (240 bar)	27500 PSI (1900 bar)
