H3004B ZSi-Foster | Beta Clamp Stacking Kit | Heavy Series | For 1/4" Tube | Polypropylene/Steel

H3004B by ZSi-Foster | Beta Clamp Stacking Kit | Heavy Series | For 1/4" Tube | Polypropylene/Steel

Save $1.35 Save $1.35
$13.47
$13.47 - $13.47
$13.47
$12.12
$12.12 - $12.12
$12.12

ZSI-Foster
Beta Hydraulic Clamps - Heavy Series - Stacking Kit Assembly - Polypropylene (Green) Cushion
Specifications for Variant SKU: H3004B ZSI-Foster
Series: Heavy Series
Maximum Clamp I.D.: 0.25
Overview:
  • Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
  • Shock absorption, vibration dampening, and noise reducing properties.
  • Securely and easily anchor clamps to machinery and steel work with weldable plates.
  • Easily cleaned.
  • Ribs in clamp bore absorb shock and vibration in direction of tube axis.
  • Upper and lower clamp halves are identical.
  • Standard - Polypropylene (Green Color): -22°F to 194°F ( -30°C to +90°C)
Materials:
  • Components: Steel
  • Cushion: Polypropylene
Installation:

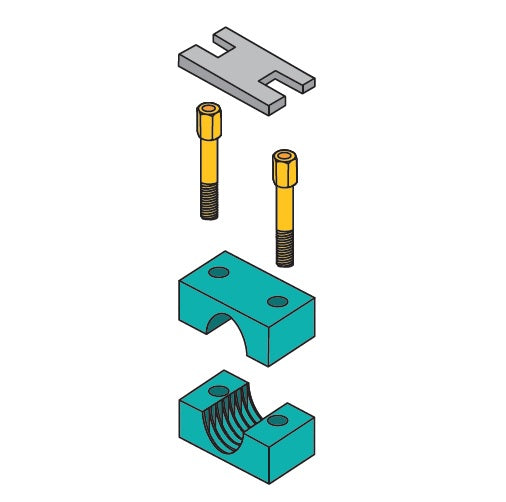

Assembly Includes:
Quantity Description
1 Each Safety Plate
2 Each Stacking Bolts
1 set Cushions
Clamp for:
Tube
Part Number		 Pipe
Part Number		 Size Hex Bolt
- H3007B 1/8" 3/8-16 x 1-3/4
H3004B H3009B 1/4" 3/8-16 x 1-3/4
H3006B H3011B 3/8" 3/8-16 x 1-3/4
H3008B H4014B 1/2" Tube: 3/8-16 x 1-3/4
Pipe: 3/8-16 x 2-1/4
H3010B - 5/8" 3/8-16 x 1-3/4
H4012B H4017B 3/4" 3/8-16 x 2-1/4
H4015B - 7/8" 3/8-16 x 2-1/4
H4016B H5021B 1" Tube: 3/8-16 x 2-1/4
Pipe: 3/8-16 x 2-3/4
H5020B H5027B 1-1/4" 3/8-16 x 2-3/4
H5024B H6030B 1-1/2" Tube: 3/8-16 x 2-3/4
Pipe: 1/2-13 x 4
H6028B - 1-3/4" 1/2-13 x 4
H6032B H6038B 2" 1/2-13 x 4
H6034B - 2-1/4" 1/2-13 x 4
H6040B H7046B 2-1/2" Tube: 1/2-13 x 4
Pipe: 5/8-11 x 5-1/4
H7044B - 2-3/4" 5/8-11 x 5-1/4
H7050B H7056B 3" 5/8-11 x 5-1/4
H7057B - 3-1/2" 5/8-11 x 5-1/4
