H3009D ZSi-Foster | Double Weld Mount Beta Clamp | Heavy Series | For 1/4" Pipe | Polypropylene/Steel

H3009D by ZSi-Foster | Double Weld Mount Beta Clamp | Heavy Series | For 1/4" Pipe | Polypropylene/Steel

Save $12.51 Save $12.51
$31.28
$31.28 - $31.28
$31.28
$18.77
$18.77 - $18.77
$18.77

ZSI-Foster
Beta Hydraulic Clamps - Heavy Series - Double Weld Mount - Polypropylene (Green) Cushion
Specifications for Variant SKU: H3009D ZSI-Foster
Series: Heavy Series
Maximum Clamp I.D.: 0.25
Overview:
  • Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
  • Shock absorption, vibration dampening, and noise reducing properties.
  • Securely and easily anchor clamps to machinery and steel work with weldable plates.
  • Easily cleaned.
  • Ribs in clamp bore absorb shock and vibration in direction of tube axis.
  • Upper and lower clamp halves are identical.
  • Standard - Polypropylene (Green Color): -22°F to 194°F ( -30°C to +90°C)
Materials:
  • Components: Steel
  • Cushion: Polypropylene
Installation:

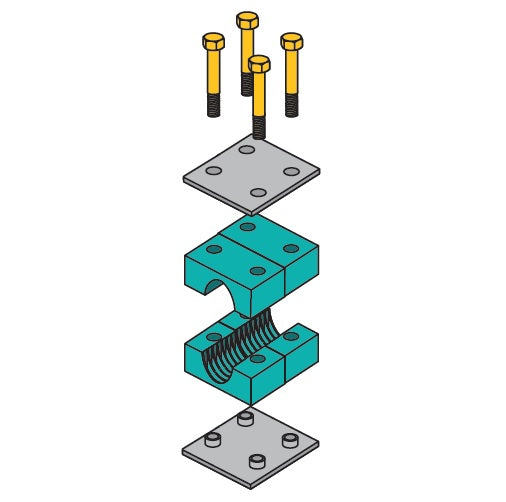

Assembly Includes:
Quantity Description
1 Each Double Weld Plate
1 Each Double Cover Plate
4 Each Hex Bolts
2 set Cushions
Clamp for:
Tube
Part Number		 Pipe
Part Number		 Size Hex Bolt
H3004D H3009D 1/4" 3/8-16 x 1-3/4
- H3011D 3/8" 3/8-16 x 1-3/4
H3008D H4014D 1/2" Tube: 3/8-16 x 1-3/4
Pipe: 3/8-16 x 2-1/4
H3010D - 5/8" 3/8-16 x 1-3/4
H4016D H5021D 1" Tube: 3/8-16 x 2-1/4
Pipe: 3/8-16 x 2-3/4
H5020D H5027D 1-1/4" 3/8-16 x 2-3/4
H5024D H6030D 1-1/2" Tube: 3/8-16 x 2-3/4
Pipe: 1/2-13 x 4
H6028D - 1-3/4" 1/2-13 x 4
H6032D H6038D 2" 1/2-13 x 4
H6034D - 2-1/4" 1/2-13 x 4
H6040D H7046D 2-1/2" Tube: 1/2-13 x 4
Pipe: 5/8-11 x 5-1/4
H7044D - 2-3/4" 5/8-11 x 5-1/4
H7050D H7056D 3" 5/8-11 x 5-1/4
H7057D - 3-1/2" 5/8-11 x 5-1/4
