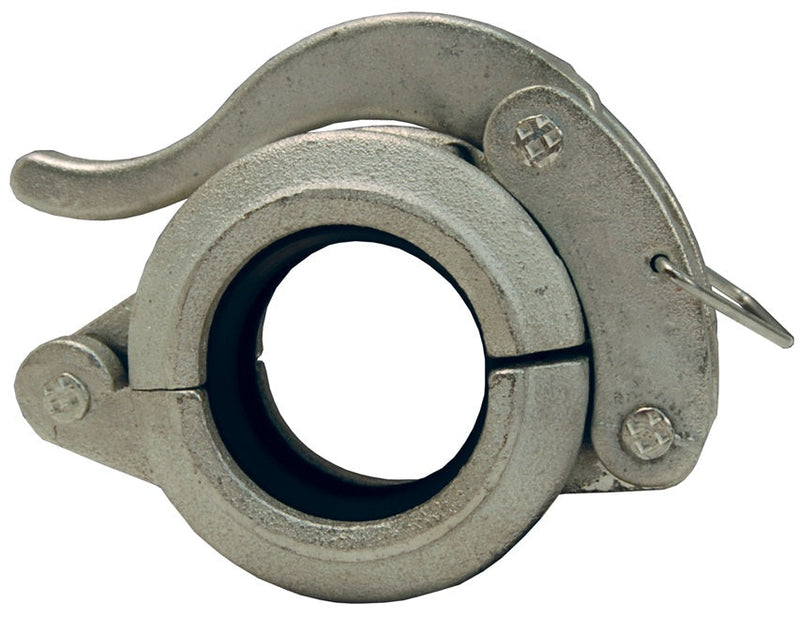

H315 by Dixon Valve | Grooved Quick Release Coupling | Series-Q | 1-1/2" Nominal Size | 1.900" Pipe OD | EPDM Gasket | Ductile Iron

Save $7.78

$70.05

$70.05 - $70.05

$70.05

$62.27

$62.27 - $62.27

$62.27

Dixon Valve
Grooved Quick Release Coupling | Series-Q

Designed for applications requiring a quick connection and/or disconnection of a pipe joint.

Quantity

Specifications for Variant SKU: H315 Dixon
Series:	Series-Q
Shape (Orientation):	Straight
Material(s):	Ductile Iron
Seal Material(s):	EPDM
Maximum Clamp I.D.:	1.9

Features:
A locking pin through the handle prevents accidental opening of the coupling.
Materials:
Ductile iron body with zinc plating and steel safety clip.
Comparable to:
Victaulic's #78 Grinnell's #7003


Ductile Iron with EPDM Gasket Part Number	Ductile Iron with Nitrile Rubber Gasket Part Number	Nominal Size	Pipe O.D.	Maximum Working Pressure PSI at 70°F (21°C)	Maximum End Load (Lbs.)	Dimensions
Ductile Iron with EPDM Gasket Part Number	Ductile Iron with Nitrile Rubber Gasket Part Number	Nominal Size	Pipe O.D.	Maximum Working Pressure PSI at 70°F (21°C)	Maximum End Load (Lbs.)	A	B	C
H315	H315BU	1-1/2"	1.900"	300 PSI	850 lbs	4-3/4"	3-1/2"	1"
H32	H32BU	2"	2.375"	300 PSI	1329 lbs	5-1/2"	3-3/4"	1-7/8"
H325	H325BU	2-1/2"	2.875"	300 PSI	2120 lbs	5-7/8"	4-3/4"	1-7/8"
H33	H33BU	3"	3.500"	300 PSI	2886 lbs	7-1/4"	5-1/4"	1-7/8"
H34	H34BU	4"	4.500"	300 PSI	4771 lbs	8-1/2"	6-1/2"	2"
H36	H36BU	6"	6.625"	300 PSI	10341 lbs	10-5/8"	8-1/2"	2"
