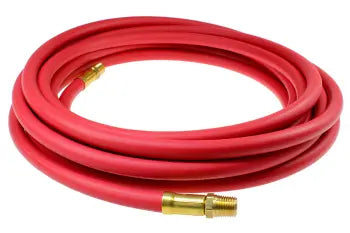

H380254N by Coilhose | General Purpose Hose | 3/8" Hose ID | 21/32" Hose OD | 1/4" Male NPT Rigid | Red | EPDM | 25ft

H380254N by Coilhose | General Purpose Hose | 3/8" Hose ID | 21/32" Hose OD | 1/4" Male NPT Rigid | Red | EPDM | 25ft

Save $6.70 Save $6.70
$60.33
$60.33 - $60.33
$60.33
$53.63
$53.63 - $53.63
$53.63
Coilhose Pneumatics - Straight Hose - General Purpose Hose
Specifications for Variant SKU: H380254N Coilhose
Hose Color(s): Red
Material(s): EPDM
Overview:
  • General Purpose Hose features a black EPDM tube, red EPDM cover with a reinforcement of multiple textile spirals. Designed for air and water applications where contact with petroleum products is minimal. This hose can be used with reusable fittings or crimped on barb fittings. It adheres to a 4:1 Safety Factor and RMA Class C - Medium Oil Resistance.
Notes:
  • Reel lengths shown are approximate and may vary.

Part No Fittings Hose ID Hose OD Temperature Range Working Pressure
at 70 deg. F		 Length Color
H14012N 1/4" MPT Rigid 1/4" 17/32" -40°F to +212°F 200 PSI 12ft Red
H14025N 1/4" MPT Rigid 25ft Red
H14050N 1/4" MPT Rigid 50ft Red
H14100N 1/4" MPT Rigid 100ft Red
H14800N No Fittings 800ft Reel Red

H51612N 1/4" MPT Rigid 5/16 5/8" -40°F to +212°F 200 PSI 12ft Red
H51625N 1/4" MPT Rigid 25ft Red
H51650N 1/4" MPT Rigid 50ft Red
H516100N 1/4" MPT Rigid 100ft Red
H516750N No Fittings 750ft Reel Red

H380124N 1/4" MPT Rigid 3/8 21/32" -40°F to +212°F 200 PSI 12ft Red
H38012N 3/8" MPT Rigid 12ft Red
H380254N 1/4" MPT Rigid 25ft Red
H38025N 3/8" MPT Rigid 25ft Red
H380504N 1/4" MPT Rigid 50ft Red
H38050N 3/8" MPT Rigid 50ft Red
H381004N 1/4" MPT Rigid 100ft Red
H38100N 3/8" MPT Rigid 100ft Red
H38700N No Fittings 700ft Reel Red

R12006N 1/2" MPT Rigid 1/2" 57/64" -40°F to +212°F 200 PSI 12ft Red
H12025N 1/2" MPT Rigid 25ft Red
H12050N 1/2" MPT Rigid 50ft Red
H12100N 1/2" MPT Rigid 100ft Red
H12550N No Fittings 550ft Reel Red
