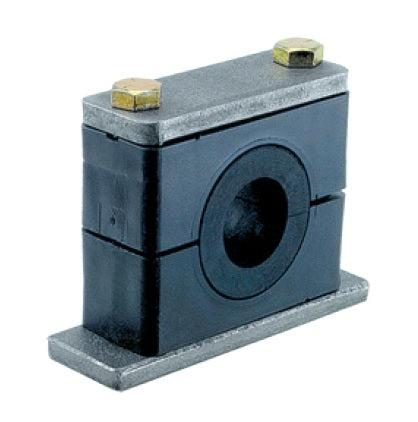

H5014RIS ZSi-Foster | Weld Mount Beta Clamp | Heavy Series with Rubber Insert | For 1/2" Pipe | Polypropylene/Steel

H5014RIS by ZSi-Foster | Weld Mount Beta Clamp | Heavy Series with Rubber Insert | For 1/2" Pipe | Polypropylene/Steel

Save $1.85 Save $1.85
$16.63
$16.63 - $16.63
$16.63
$14.78
$14.78 - $14.78
$14.78

ZSI-Foster
Beta Hydraulic Clamps - Heavy Series with Rubber Insert - Weld Mount - Polypropylene/Steel

Used for high pressure hydraulics and heavy duty operations, as well as intermittent load and high oil speeds.
Specifications for Variant SKU: H5014RIS ZSI-Foster
Series: Heavy Series with Rubber Insert
Maximum Clamp I.D.: 0.5
Overview:
  • Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
  • Shock absorption, vibration dampening, and noise reducing properties.
  • Securely and easily anchor clamps to machinery and steel work with weldable plates.
  • Easily cleaned.
  • Ribs in clamp bore absorb shock and vibration in direction of tube axis.
  • Upper and lower clamp halves are identical.
  • Increase size range over standard series
Materials:
  • Steel
Installation:
Assembly Includes:
Quantity Description
1 Each Weld Plate
1 Each Cover Plate
2 Each Hex Bolts
1 Set Cushions
1 Each Rubber Insert
Clamp for:
Tube
Part Number		 Pipe
Part Number		 Size Hex Bolt
- H4011RIS 3/8" 3/8-16 x 2-1/4
H4008RIS H5014RIS 1/2" Tube: 3/8-16 x 2-1/4
Pipe: 3/8-16 x 2-3/4
H4010RIS - 5/8" 3/8-16 x 2-1/4
H4012RIS H5017RIS 3/4" Tube: 3/8-16 x 2-1/4
Pipe: 3/8-16 x 2-3/4
H5015RIS - 7/8" 3/8-16 x 2-3/4
H5016RIS H6021RIS 1" Tube: 3/8-16 x 2-3/4
Pipe: 1/2-13 x 4
H5020RIS H6027RIS 1-1/4" Tube: 3/8-16 x 2-3/4
Pipe: 1/2-13 x 4
H6024RIS H6030RIS 1-1/2" 1/2-13 x 4
H6032RIS H7038RIS 2" Tube: 1/2-13 x 4
Pipe: 5/8-11 x 5-1/2
H6034RIS - 2-1/8" 1/2-13 x 4
- H7046RIS 2-1/2" 5/8-11 x 5-1/2
H7050RIS - 3" 5/8-11 x 5-1/2
ZSi Foster

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
